Texas Instruments SN74LVTH126DGVR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.49 | $0.49 |
| 15+ | $0.48 | $7.20 |
| 25+ | $0.47 | $11.75 |
| 50+ | $0.44 | $22.00 |
| 100+ | $0.39 | $39.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | 74LVTH |
| Packaging | Marketplace | Cut Tape (CT) |
| Part Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 4 |
| Number of Bits per Element | 1 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 32mA, 64mA |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

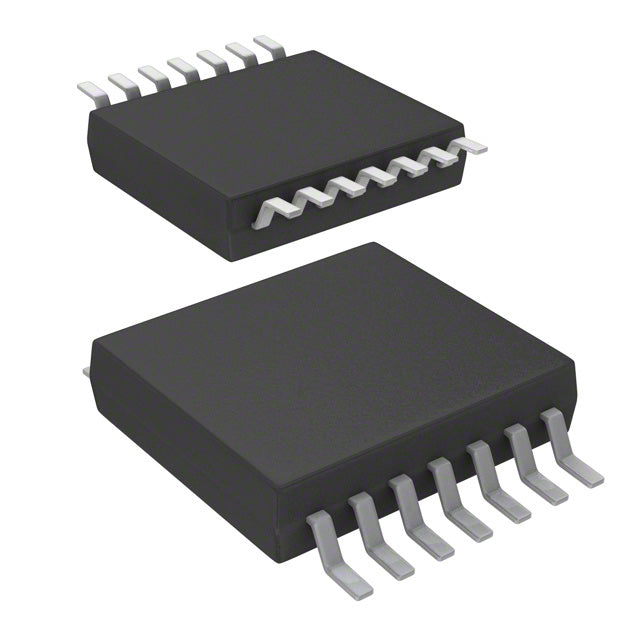

| Package / Case | 14-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TVSOP |
| ROHS |  |
The SN74LVTH126DGVR is a quad non-inverting buffer from Texas Instruments, designed for high-performance 3.3V systems. It operates from 2.7V to 3.6V and features 3-state outputs, allowing for connection to shared buses. This device is capable of sinking up to 64mA and sourcing 32mA, providing excellent drive strength for demanding applications. The 74LVTH family is known for its low noise and high speed. Housed in a 14-pin TFSOP package, it is suitable for a wide range of applications including memory buffering, backplane driving, and general-purpose logic interfacing.
- High Output Drive (64mA Sink): Can directly drive heavy loads, reducing the need for additional driver components.
- 3-State Outputs: Enables bus multiplexing and bidirectional data flow, essential for shared bus architectures.
- Low-Voltage Operation (2.7V-3.6V): Compatible with standard 3.3V logic, reducing power consumption compared to 5V systems.
- High-Speed Performance: The 74LVTH family is optimized for fast switching, suitable for high-frequency bus applications.
High-Drive Bus Interfacing
With a sink capability of 64mA, this buffer can drive heavy bus loads directly, making it ideal for memory address and data lines in 3.3V systems.
Backplane and Motherboard Drivers
The 3-state outputs allow multiple boards to share a common bus. The high drive current ensures signal integrity across long, high-capacitance traces.
Memory Module Buffering
Use the SN74LVTH126 to buffer control and address signals to multiple DRAM or SRAM chips, ensuring clean and timely delivery of signals.
Telecommunications Equipment
In networking gear, this buffer can drive high-speed signals to line cards and switching fabrics, maintaining signal quality at 3.3V logic levels.
Industrial Control I/O
The 3-state feature is perfect for creating bidirectional I/O ports in PLCs and industrial controllers, allowing for flexible input/output configurations.
Server and Computing Platforms
This buffer is suitable for buffering PCI or other local buses in servers, providing the necessary drive strength and isolation.
- Q: What is the logic family of the SN74LVTH126DGVR?
- A: It is part of the 74LVTH (Low-Voltage TTL) family.
- Q: What is the function of this IC?
- A: It is a quad (4-channel) non-inverting buffer with 3-state outputs.
- Q: What is the output type?
- A: It features 3-State outputs for bus-oriented applications.
- Q: What is the supply voltage range?
- A: It operates from 2.7V to 3.6V.
- Q: What is the package type?
- A: It comes in a 14-pin TFSOP package.
- Q: What is the output current capability?
- A: It can sink 64mA and source 32mA.
