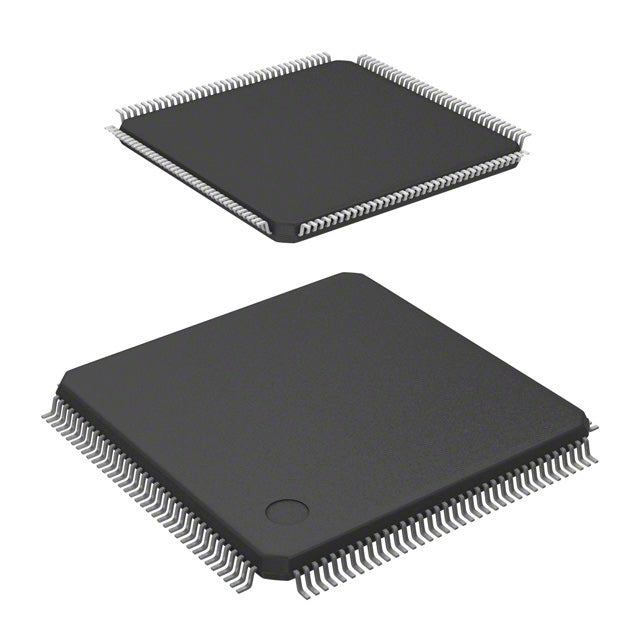

STMicroelectronics SPC560B54L5C6E0X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.64 | $27.64 |
| 15+ | $6.36 | $95.40 |
| 25+ | $6.22 | $155.50 |
| 50+ | $5.87 | $293.50 |
| 100+ | $5.18 | $518.00 |
| N+ | $1.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | e200z0h |
| Core Size | 32-Bit Single-Core |
| Speed | 64MHz |
| Connectivity | CANbus, I2C, LINbus, SCI, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 121 |
| Program Memory Size | 768KB (768K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 53x10/12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Package / Case | 144-LQFP |
| ROHS |  |
The STMicroelectronics SPC560B54L5C6E0X is a 32-bit automotive-grade microcontroller based on the e200z0h Power Architecture core. It operates at 64MHz with a supply voltage from 3V to 5.5V, making it robust for vehicle electrical systems. The device includes 768KB of flash and 64KB of RAM, along with DMA, LVD, POR, PWM, and WDT peripherals. Housed in a 144-LQFP package, it is designed for -40°C to 125°C environments, ideal for powertrain and body control applications.
- Automotive Reliability: 125°C operation and 5.5V supply meet AEC-Q100 standards for harsh conditions.
- High Memory Capacity: 768KB flash supports complex application code and calibration data.
- Real-Time Control: 64MHz e200z0h core with DMA ensures deterministic response for motor and engine control.
- Integrated Safety Features: LVD, POR, and WDT enhance system robustness against voltage transients.
Automotive Body Control Modules
The 5.5V supply and 125°C rating make it ideal for under-hood and body electronics, handling multiple PWM outputs for lighting and motor control.
Engine Management Systems
With 64MHz speed and 768KB flash, it can execute complex control algorithms for fuel injection and ignition timing in real-time.
Industrial Motor Control
The DMA and PWM features support field-oriented control of AC and DC motors in factory automation, with robust LVD and POR for safety.
HVAC Systems
Automotive-grade temperature range and 3V-5.5V operation allow direct connection to vehicle battery systems for climate control.
Safety-Critical Applications
The e200z0h core with WDT and LVD provides reliable operation for braking or steering assist systems requiring high reliability.
Agricultural Vehicles
Rugged design and wide voltage range support harsh environments in tractors and harvesters for implement control.
- Q: What is the core architecture?
- A: It uses the e200z0h Power Architecture core running at 64MHz.
- Q: What is the supply voltage range?
- A: It operates from 3V to 5.5V, suitable for automotive environments.
- Q: What is the operating temperature?
- A: It is rated for -40°C to 125°C.
- Q: How much flash memory is available?
- A: It has 768KB of flash memory.
- Q: What package is it available in?
- A: It comes in a 144-LQFP package.
