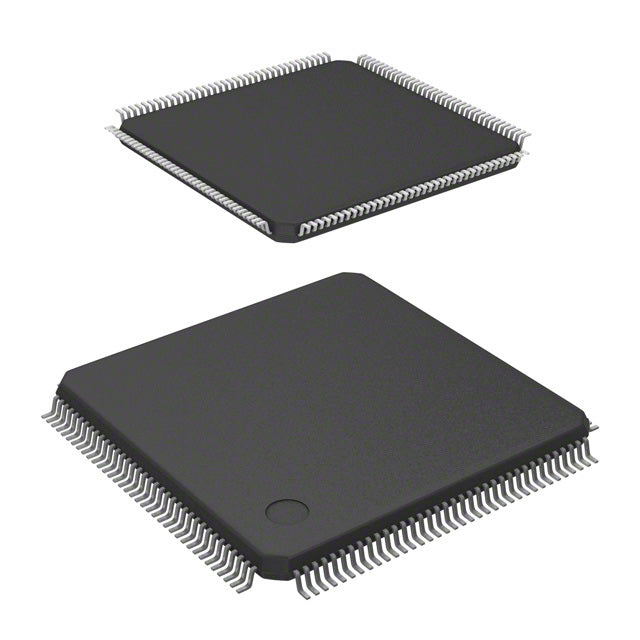

STMicroelectronics SPC560P60L5CEFAR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $26.40 | $26.40 |
| 15+ | $6.07 | $91.05 |
| 25+ | $5.94 | $148.50 |
| 50+ | $5.61 | $280.50 |
| 100+ | $4.95 | $495.00 |
| N+ | $0.99 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | e200z0h |
| Core Size | 32-Bit Single-Core |
| Speed | 64MHz |
| Connectivity | CANbus, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 80 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 80K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | A/D 26x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Package / Case | 144-LQFP |
| ROHS |  |
The STMicroelectronics SPC560P60L5CEFAR is a 32-bit MCU based on the e200z0h Power Architecture core, running at 64MHz. It provides 1MB flash and 80KB RAM in a 144-LQFP package. With a 4.5V to 5.5V supply and -40°C to 125°C operation, it is engineered for automotive powertrain and industrial control applications.
- Automotive-proven architecture: e200z0h core with 64MHz performance for real-time control.
- Large memory: 1MB flash and 80KB RAM support complex applications and data logging.
- 5V operation: Direct interface with automotive sensors and actuators without level shifting.
- High pin count: 144-LQFP provides extensive I/O for multi-peripheral systems.
Automotive Engine Control Units
Process sensor inputs and control fuel injection with the 64MHz e200z0h core and 1MB flash, meeting the 5V automotive environment requirement.
Transmission Control Modules
Handle complex shift algorithms and solenoid drivers with PWM and DMA, supported by the 125°C rating for transmission-mounted electronics.
Industrial Robotics
Implement precise servo control loops with the 5V I/O and 80KB RAM for data logging, suitable for factory automation.
Off-Highway Vehicle Displays
Drive instrument clusters and communicate via CAN with the 144-LQFP package, offering ample GPIOs for multiple peripherals.
Power Train Sensors
Interface with knock sensors and temperature probes, using the WDT and POR for fail-safe operation in harsh conditions.
Battery Management Systems
Monitor cell voltages in 12V/24V systems with the 4.5V-5.5V supply, using the DMA for efficient ADC data transfer.
- Q: What core does it use?
- A: e200z0h (Power Architecture).
- Q: What is the max speed?
- A: 64MHz.
- Q: How much flash and RAM?
- A: 1MB flash, 80KB RAM.
- Q: What is the supply voltage?
- A: 4.5V to 5.5V.
- Q: What is the temperature range?
- A: -40°C to 125°C.
