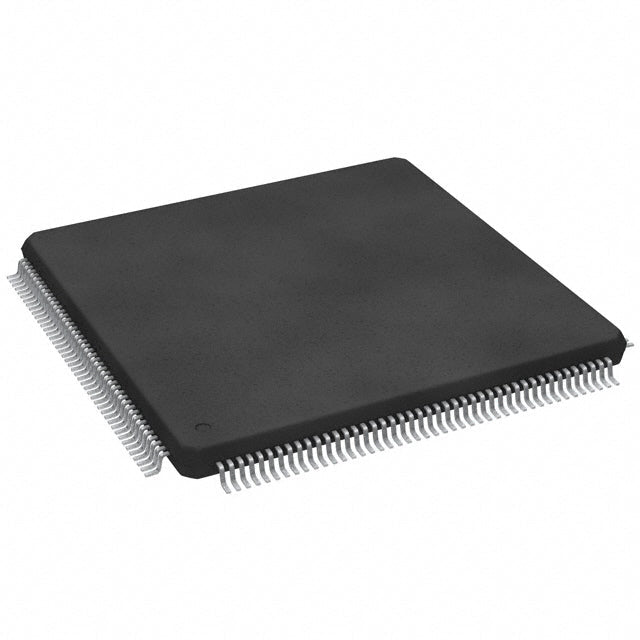

STMicroelectronics SPC564B64L7C9E0X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $51.27 | $51.27 |
| 15+ | $11.79 | $176.85 |
| 25+ | $11.54 | $288.50 |
| 50+ | $10.90 | $545.00 |
| 100+ | $9.62 | $962.00 |
| N+ | $1.92 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | e200z4d |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 147 |
| Program Memory Size | 1.5MB (1.5M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 27x10b, 5x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
| ROHS |  |
The STMicroelectronics SPC564B64L7C9E0X is a 32-bit microcontroller featuring the e200z4d core at 120MHz. It offers 1.5MB of flash and 128KB of RAM, operating from 3V to 5.5V. Packaged in a 176-LQFP, it is designed for extreme environments with a -40°C to +125°C range, including DMA, PWM, and watchdog peripherals.
- Extended Temperature Range: Operates from -40°C to +125°C for harsh environments.
- Wide Voltage Support: 3V to 5.5V supply simplifies power design.
- Automotive-Grade Reliability: Built for demanding automotive and industrial applications.
- Real-Time Control: 120MHz e200z4d core with DMA and PWM for precise actuation.
Automotive Engine Control Units (ECU)
The 5.5V operation and 125°C rating make it suitable for under-hood applications requiring robust performance.
Industrial Powertrain Systems
Its DMA and PWM features enable precise control of pumps, fans, and compressors in heavy machinery.
Electric Vehicle (EV) Battery Management
The wide voltage range and high-temperature tolerance support reliable monitoring in battery management systems.
Avionics Actuators
With a 120MHz core and safety features, it can manage flight control actuators with deterministic response.
Off-Highway Vehicle Controls
Designed for harsh environments, it handles hydraulic and pneumatic control in agricultural and construction equipment.
Power Inverters
Its PWM capabilities and high-temperature operation are ideal for industrial motor drives and inverters.
- Q: What is the core processor of the SPC564B64L7C9E0X?
- A: It uses the e200z4d Power Architecture core.
- Q: What is the maximum operating frequency?
- A: The core runs at up to 120MHz.
- Q: What is the supply voltage range?
- A: It operates from 3V to 5.5V.
- Q: How much flash and RAM are included?
- A: It has 1.5MB of flash memory and 128KB of RAM.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to +125°C.
