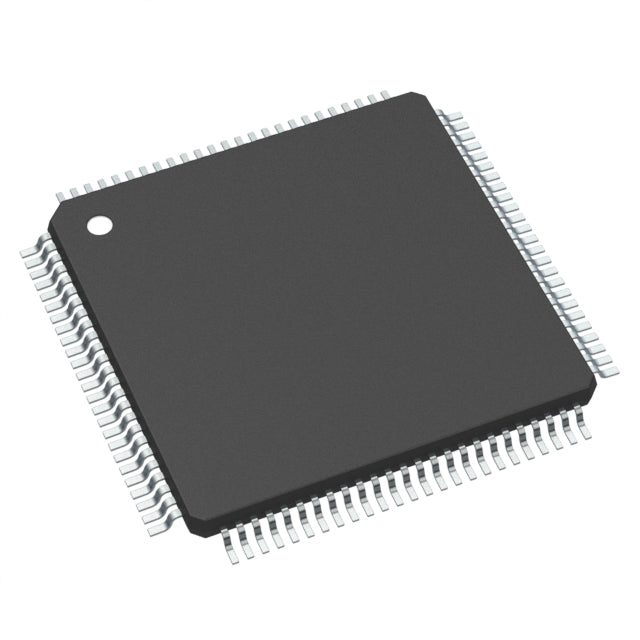

STMicroelectronics SPC56EL54L3CBFSR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $50.12 | $50.12 |
| 15+ | $11.53 | $172.95 |
| 25+ | $11.28 | $282.00 |
| 50+ | $10.65 | $532.50 |
| 100+ | $9.40 | $940.00 |
| N+ | $1.88 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56xL |
| Packaging | Tray | NULL |
| Core Processor | e200z4d |
| Core Size | 32-Bit Dual-Core |
| Speed | 120MHz |
| Connectivity | CANbus, LINbus, SCI, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 768KB (768K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 96K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.63V |
| Data Converters | A/D 32x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-LQFP (14x14) |
| Package / Case | 100-LQFP |
| ROHS |  |
The STMicroelectronics SPC56EL54L3CBFSR is a 32-bit automotive-grade microcontroller featuring a single e200z4d core at 120MHz. It offers 768KB of flash memory and 96KB of RAM, packaged in a 100-LQFP. Designed for harsh environments, it operates from -40°C to 125°C and supports 3V to 3.63V supplies. Integrated DMA, LVD, POR, PWM, and WDT peripherals make it a robust solution for powertrain and body electronics.
- Automotive Qualified: AEC-Q100 compliant and rated for 125°C, ensuring operation in extreme under-hood conditions.
- Real-Time Performance: The 120MHz e200z4d core delivers high DMIPS for complex control algorithms.
- Comprehensive Safety: LVD and POR protect against voltage transients, critical for automotive power nets.
- Scalable Memory: 768KB flash provides ample space for AUTOSAR stacks and application code.
Automotive Engine Control Units (ECU)
The 120MHz e200z4d core and 768KB flash handle real-time combustion control algorithms, while the 125°C rating ensures reliability near the engine block.
Transmission Control Modules
With PWM for solenoid drivers and DMA for high-speed sensor acquisition, this MCU manages clutch and gear shifting logic with precision.
Electric Power Steering (EPS)
The fast processing and integrated LVD (Low Voltage Detector) provide safe torque assist control, meeting ASIL-B safety requirements.
Body Control Modules (BCM)
The 100-LQFP package and rich I/O support managing lighting, wipers, and central locking, with WDT for robust operation.
Hybrid Vehicle Inverters
DMA and PWM channels enable efficient motor control for traction drives, while the wide temperature range supports thermal cycling.
Industrial Pump Control
Beyond automotive, the 120MHz performance and 3.3V operation suit variable speed drives for industrial pumps, offering high reliability.
