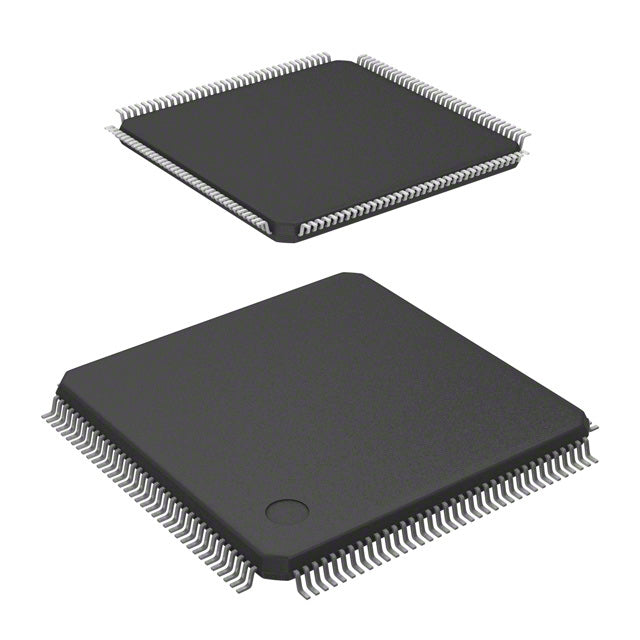

STMicroelectronics SPC56EL70L5CBFSR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $62.61 | $62.61 |
| 15+ | $14.40 | $216.00 |
| 25+ | $14.09 | $352.25 |
| 50+ | $13.30 | $665.00 |
| 100+ | $11.74 | $1,174.00 |
| N+ | $2.35 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC56xL |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | e200z4d |
| Core Size | 32-Bit Dual-Core |
| Speed | 120MHz |
| Connectivity | CANbus, LINbus, SCI, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 96 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.63V |
| Data Converters | A/D 32x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Package / Case | 144-LQFP |
| ROHS |  |
The SPC56EL70L5CBFSR from STMicroelectronics is a high-performance 32-bit MCU built on the e200z4d core. It operates at 120MHz with 2MB flash and 192K RAM, packaged in a 144-LQFP. Designed for automotive and industrial applications, it supports a supply voltage of 3V to 3.63V and operates from -40°C to 125°C. Integrated DMA, LVD, POR, PWM, and WDT enhance system reliability and real-time control.
- High-Speed Processing: 120MHz e200z4d core enables rapid execution of complex control loops.
- Large Memory Capacity: 2MB flash and 192K RAM support extensive application code and data buffering.
- Wide Temperature Range: -40°C to 125°C ensures operation in extreme automotive environments.
- Comprehensive Safety Features: LVD and POR protect against voltage fluctuations, enhancing system stability.
Automotive Engine Control Units (ECUs)
The 120MHz e200z4d core and 2MB flash enable complex real-time algorithms for fuel injection and ignition timing, meeting AEC-Q100 grade requirements.
Industrial Robotics
With DMA and PWM, it can drive multiple servo axes with precise timing, while the wide temperature range supports harsh factory environments.
Advanced Driver Assistance Systems (ADAS)
The high-speed processing and 192K RAM allow sensor fusion for camera and radar data, supporting real-time decision making.
Power Train Control
Its robust PWM and WDT features ensure reliable control of electric motors and battery management in hybrid vehicles.
Medical Monitoring Devices
The low-voltage operation (3V-3.63V) and LVD/POR features provide safe, stable operation for portable diagnostic equipment.
Smart Grid Infrastructure
With 2MB memory and DMA, it can handle complex communication protocols for grid monitoring and control systems.
