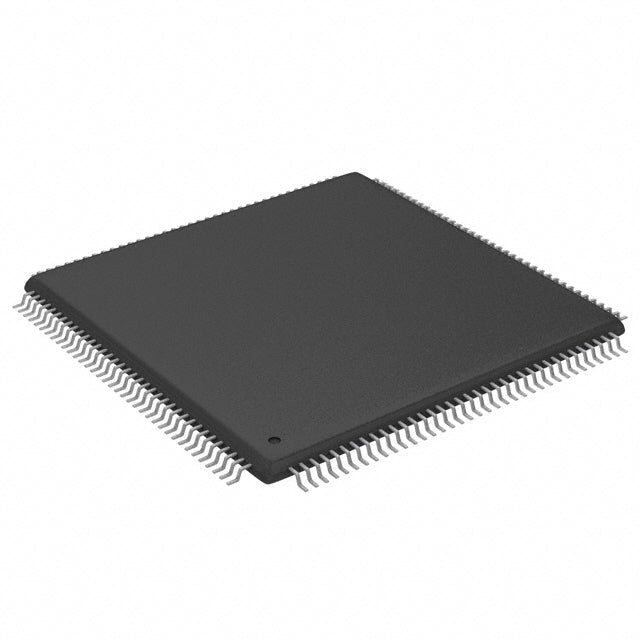

STMicroelectronics SPC584B60E5EDC0X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $45.80 | $45.80 |
| 15+ | $10.53 | $157.95 |
| 25+ | $10.31 | $257.75 |
| 50+ | $9.73 | $486.50 |
| 100+ | $8.59 | $859.00 |
| N+ | $1.72 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC58 4B-Line |
| Packaging | Bulk | NULL |
| Core Processor | e200z420 |
| Core Size | 32-Bit |
| Speed | 120MHz |
| Connectivity | CANbus, I2C, LINbus, SPI, UART/USART |
| Peripherals | DMA, POR, WDT |
| Number of I/O | - |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 192K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 10/12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-eTQFP (20x20) |
| Package / Case | 144-TQFP Exposed Pad |
| ROHS |  |
The SPC584B60E5EDC0X from STMicroelectronics is a 32-bit automotive-grade MCU based on the e200z420 core. It runs at 120MHz with 1MB flash and 192KB RAM. The 3V to 5.5V supply range and integrated DMA, POR, and WDT make it suitable for powertrain and chassis applications. The 144-TQFP exposed-pad package enhances thermal performance.
- 120MHz e200z420 core provides high real-time performance for automotive control.
- 1MB flash and 192KB RAM accommodate complex application code and data.
- Wide voltage range (3V-5.5V) simplifies direct battery connection.
- Exposed pad package improves heat dissipation in high-power environments.
Automotive Engine Control Units
120MHz e200z420 core and 1MB flash handle complex fuel injection algorithms.
Electric Power Steering
High-speed processing and DMA enable precise motor control with low latency.
Industrial Automation PLCs
Wide voltage range and robust POR/WDT ensure reliable operation in factory floors.
Advanced Driver Assistance Systems
Large RAM (192KB) supports sensor fusion and real-time decision making.
Smart Battery Management Systems
5.5V tolerance allows direct interface with automotive battery systems.
Off-Highway Vehicle Controllers
High-temperature rating and exposed pad package aid thermal dissipation.
- Q: What core does the SPC584B60E5EDC0X use?
- A: It uses the e200z420 core at 120MHz.
- Q: What is the memory capacity?
- A: 1MB flash and 192KB RAM.
- Q: What is the voltage range?
- A: 3V to 5.5V.
- Q: What package is available?
- A: 144-TQFP with exposed pad.
- Q: What is the temperature range?
- A: -40°C to 105°C.
