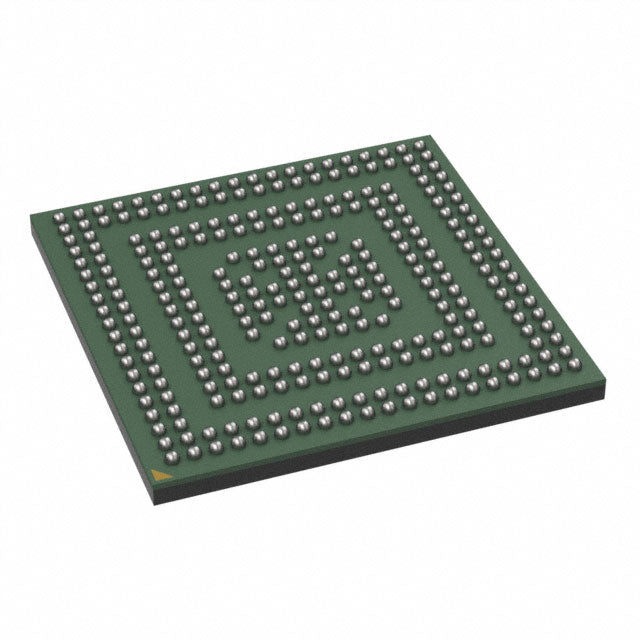

STMicroelectronics SPC58NE84C3QMHAY
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $126.38 | $126.38 |
| 15+ | $29.06 | $435.90 |
| 25+ | $28.43 | $710.75 |
| 50+ | $26.85 | $1,342.50 |
| 100+ | $23.69 | $2,369.00 |
| N+ | $4.74 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | SPC58 |
| Packaging | Tray | NULL |
| Core Processor | e200z4 |
| Core Size | 32-Bit Tri-Core |
| Speed | 180MHz |
| Connectivity | CANbus, Ethernet, FlexRay, I2C, LINbus, SPI |
| Peripherals | DMA |
| Number of I/O | 64 |
| Program Memory Size | 6MB (6M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 256K x 8 |
| RAM Size | 608K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.2V, 3.3V, 5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification AEC | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 292-LFBGA (17x17) |
| Package / Case | 292-BGA |
| ROHS |  |
The SPC58NE84C3QMHAY from STMicroelectronics is a high-end automotive microcontroller featuring the e200z4 core at 180MHz. With 6MB flash and 608KB RAM, it delivers exceptional performance for complex powertrain and industrial applications. Its triple supply voltage support and 292-BGA package offer maximum design flexibility.
- High-speed 180MHz e200z4: Provides fast processing for real-time control.
- Large 6MB flash: Supports extensive application code and data storage.
- Triple supply (1.2V/3.3V/5V): Enables flexible power architecture design.
- High-density 292-BGA: Offers excellent thermal performance and I/O count.
Advanced Powertrain Control
The 180MHz e200z4 core with 6MB flash handles multi-cylinder engine management with real-time torque control and diagnostics.
Electric Vehicle Inverters
With 608KB RAM and triple supply rails, it manages high-frequency PWM for traction motor inverters with precise timing.
Autonomous Driving Compute
The 292-BGA package and 180MHz speed support sensor fusion preprocessing for LIDAR and camera data.
Industrial Servo Drives
Its DMA capabilities and 6MB flash enable complex motion profiles for high-precision robotic arms.
Smart Grid Protection
The wide temperature range and 1.2V core supply support fast fault detection in grid protection relays.
Aerospace Actuation Systems
The robust BGA package and 180MHz performance ensure reliable control of flight surface actuators.
- Q: What core processor is used?
- A: It uses the e200z4 Power Architecture core.
- Q: What is the maximum clock speed?
- A: The core operates at up to 180MHz.
- Q: What supply voltages are supported?
- A: It supports 1.2V, 3.3V, and 5V supplies.
- Q: How much flash and RAM are available?
- A: It has 6MB flash and 608KB RAM.
- Q: What package is offered?
- A: It comes in a 292-ball BGA package.
