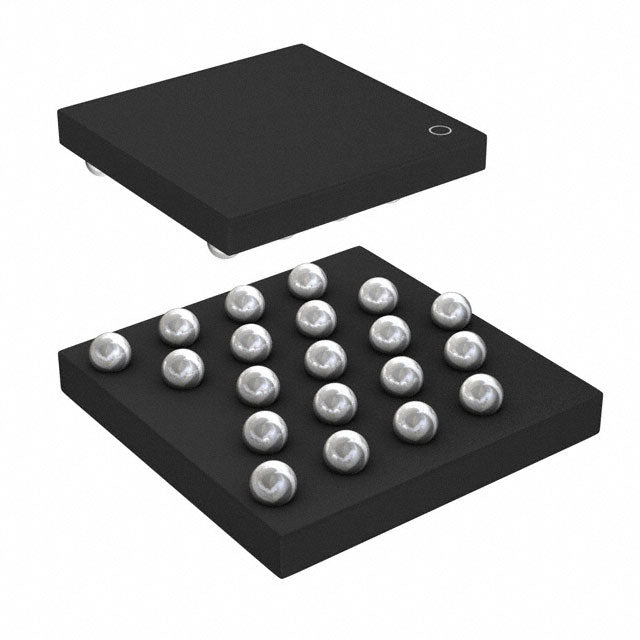

Analog Devices Inc. SSM3515CCBZ-R7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 33.45 | Dhs. 33.45 |
| 15+ | Dhs. 32.39 | Dhs. 485.85 |
| 25+ | Dhs. 31.69 | Dhs. 792.25 |
| 50+ | Dhs. 29.93 | Dhs. 1,496.50 |
| 100+ | Dhs. 26.41 | Dhs. 2,641.00 |
| N+ | Dhs. 5.28 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc. |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Part Status | Active |
| Type | Class D |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | - |
| Voltage - Supply | 4.5V ~ 17V |
| Features | Depop, Short-Circuit and Thermal Protection |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Supplier Device Package | 20-WLCSP (1.8x2.2) |
| Package / Case | 20-UFBGA, WLCSP |
| ROHS |  |
This mono Class D audio amplifier delivers efficient, high-fidelity sound for portable and space-constrained applications. Operating from 4.5V to 17V, it integrates Depop circuitry for pop-free startup and comprehensive short-circuit and thermal protection. The compact 20-WLCSP package enables ultra-slim designs in Bluetooth speakers, smart home devices, and alarm systems. With its high efficiency and low external component count, this amplifier simplifies design while maximizing battery life and audio performance.
- High Efficiency Class D Operation: Minimizes power loss and heat generation, extending battery life in portable devices.
- Integrated Depop Circuitry: Eliminates audible clicks and pops during power transitions for a premium user experience.
- Comprehensive Protection: Short-circuit and thermal protection ensure robust operation and long-term reliability.
- Ultra-Compact WLCSP Package: Enables miniaturized designs in wearables, IoT devices, and space-limited audio systems.
Portable Bluetooth Speaker
The SSM3515CCBZ-R7's low 4.5V minimum supply and high-efficiency Class D operation make it ideal for battery-powered Bluetooth speakers, maximizing playback time while delivering clear mono audio.
Smart Home Voice Assistant
With its small WLCSP package and Depop feature, this amplifier integrates seamlessly into compact smart speakers, providing pop-free startup and reliable thermal performance in enclosed spaces.
Portable Gaming Console
The wide supply range (up to 17V) allows the SSM3515 to be used in handheld gaming devices, delivering robust mono sound from a single lithium-ion or USB-C power source.
Intercom System
Short-circuit and thermal protection ensure the amplifier can handle continuous operation in intercoms, while the mono channel simplifies single-speaker designs.
Alarm and Siren Driver
The high efficiency of Class D operation reduces heat dissipation, making the SSM3515 suitable for driving loud alarms or sirens in security systems without bulky heatsinks.
DIY Audio Project
Hobbyists benefit from the easy-to-use surface-mount package and minimal external component count, enabling compact mono amplifier builds for custom audio projects.
| Model | Package | Voltage Range | Output Power (Typical) |
|---|---|---|---|
| SSM3515CCBZ-R7 | 20-WLCSP (1.8x2.2) | 4.5V ~ 17V | Mono, Class D |
| DRV603PW | 14-TSSOP | 3V ~ 5.5V | Stereo, Class AB |
| BD28623MUV-E2 | VQFN024V4040 | 8.5V ~ 24V | 17W x 2 @ 8Ohm |
| TDA7569BLVPDTR | PowerSO-36 | 6V ~ 18V | 50W x 4 @ 4Ohm |
- Q: What is the supply voltage range for the SSM3515CCBZ-R7?
- A: The SSM3515CCBZ-R7 operates from 4.5V to 17V, making it suitable for a variety of battery-powered and line-powered applications.
- Q: Does this amplifier have pop-noise suppression?
- A: Yes, it features Depop circuitry to minimize audible clicks and pops during power-up and shutdown.
- Q: What protection features are included?
- A: It includes short-circuit and thermal protection to ensure reliable operation under fault conditions.
- Q: What is the typical output power?
- A: As a mono Class D amplifier, it can deliver up to several watts depending on supply voltage and load impedance, ideal for portable speakers.
- Q: What package is the SSM3515CCBZ-R7 available in?
- A: It comes in a compact 20-WLCSP (1.8x2.2) package, suitable for space-constrained designs.
