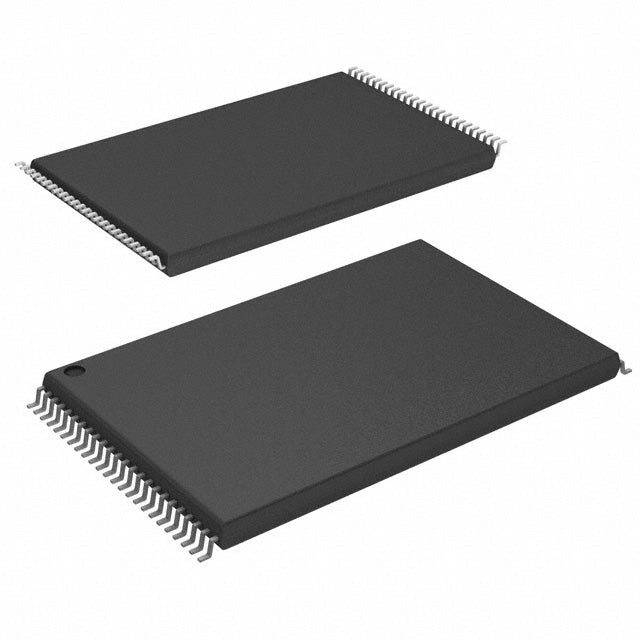

Microchip Technology SST39VF401C-70-4C-EKE-T

SST39VF401C-70-4C-EKE-T - High-Performance 4Mbit Parallel Flash Memory IC for Industrial Applications

The Microchip SST39VF401C-70-4C-EKE-T is a premium 4Mbit (256K x 16) parallel flash memory IC engineered for mission-critical industrial and embedded applications requiring reliable, high-speed non-volatile storage. This authentic, industrial-grade flash memory component combines exceptional performance with robust reliability, making it the ideal choice for automotive electronics, industrial automation, medical devices, and telecommunications infrastructure.

Featuring an ultra-fast 70ns access time and energy-efficient low-voltage operation (2.7V to 3.6V), this surface-mount flash memory IC delivers outstanding performance across demanding environmental conditions. The compact 48-TSOP package ensures seamless integration into high-density PCB layouts while maintaining superior thermal characteristics across the full industrial temperature range of 0°C to 70°C.

Key Features & Benefits:

• 4Mbit Flash Memory Capacity - 256K x 16 organization provides ample storage for firmware, configuration data, and system parameters
• Ultra-Fast 70ns Access Time - Ensures responsive system performance and rapid data retrieval for time-critical applications
• Low-Voltage Operation (2.7V to 3.6V) - Reduces power consumption and enables energy-efficient embedded system designs
• Rapid 10µs Write Cycle Time - Enables efficient programming and in-system updates with minimal downtime
• Industrial Temperature Range (0°C to 70°C) - Guaranteed reliable operation in harsh industrial environments
• RoHS Compliant - Meets environmental safety standards for global market compliance
• Surface Mount 48-TSOP Package - Optimized for automated assembly processes and space-constrained designs
• Parallel Interface - Provides straightforward integration with microcontrollers and processors
• Long Lifecycle Availability - Backed by HQICKEY's commitment to extended product availability for industrial applications

Complete Technical Specifications:

Target Applications & Use Cases:

• Embedded System Firmware Storage - Reliable boot code and application firmware storage for microcontroller-based systems
• Industrial Control & Automation - Configuration data, calibration parameters, and operational logs for PLCs and industrial controllers
• Automotive Electronics & Infotainment - ECU firmware, navigation data, and multimedia content storage in automotive applications
• Medical Device Data Logging - Patient data, diagnostic information, and device configuration in medical instrumentation
• Telecommunications Equipment - Network configuration, routing tables, and system parameters for telecom infrastructure
• Consumer Electronics - Code storage, user preferences, and system settings in smart home devices and IoT applications
• Test & Measurement Instruments - Calibration data and measurement profiles in precision instrumentation

Performance Advantages:

The SST39VF401C-70-4C-EKE-T flash memory IC delivers exceptional performance characteristics that make it ideal for demanding embedded applications. The 70ns access time ensures rapid data retrieval, critical for real-time systems and responsive user interfaces. The 10µs write cycle time enables efficient in-system programming and field updates, minimizing system downtime during firmware updates.

The wide voltage range (2.7V to 3.6V) provides design flexibility and compatibility with both 3.3V and battery-powered systems, while the low power consumption extends battery life in portable applications. The industrial temperature rating guarantees reliable operation in harsh environments, from factory floors to outdoor installations.

Quality & Authenticity Guarantee:

At HQICKEY, we specialize in authentic, premium semiconductor components with guaranteed long lifecycle availability and dedicated technical support. Every SST39VF401C-70-4C-EKE-T flash memory IC is sourced directly from authorized Microchip Technology distributors, ensuring 100% authenticity, full manufacturer warranty coverage, and complete traceability.

Our rigorous quality control processes and anti-counterfeit verification procedures ensure that you receive genuine components that meet or exceed manufacturer specifications. We stand behind every component with comprehensive technical support and lifecycle management services to support your long-term production requirements.

Design Resources & Support:

HQICKEY provides comprehensive technical support to help you successfully integrate the SST39VF401C-70-4C-EKE-T into your designs. Our engineering team can assist with component selection, application guidance, and troubleshooting to ensure optimal performance in your specific application.
