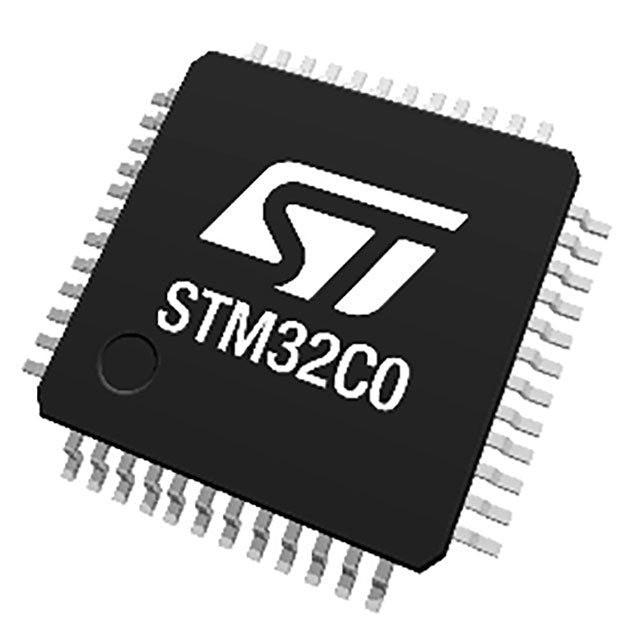

STMicroelectronics STM32C031C4T6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.54 | $1.54 |
| 15+ | $1.01 | $15.15 |
| 25+ | $0.99 | $24.75 |
| 50+ | $0.94 | $47.00 |
| 100+ | $0.83 | $83.00 |
| N+ | $0.17 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32C0 |
| Packaging | This product has a maximum purchase limit | Tray |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 48MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT |
| Number of I/O | 45 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 21x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LQFP (7x7) |
| Package / Case | 48-LQFP |
| ROHS |  |
The STM32C031C4T6 from STMicroelectronics is a 32-bit ARM Cortex-M0+ MCU running at 48MHz. It provides 16KB flash and 12KB RAM in a 48-LQFP package. Operating from 2V to 3.6V, it includes brown-out reset, POR, PWM, a temperature sensor, and a watchdog timer for robust embedded control.
- Efficient 48MHz Cortex-M0+ core – balances performance and power for cost-sensitive applications.
- Integrated temp sensor and WDT – reduces external components and improves system reliability.
- Wide 2V-3.6V supply – simplifies power design with standard 3.3V or 2.5V rails.
- 48-pin LQFP – offers ample I/O for peripheral-rich designs in compact footprints.
Industrial Sensor Nodes
With 48MHz Cortex-M0+ and 12KB RAM, it handles sensor fusion and basic signal processing in compact 48-LQFP designs.
Motor Control (Low-end)
PWM timers and WDT support simple BLDC or brushed DC motor control with brown-out protection for reliable operation.
Portable Instrumentation
2V-3.6V supply and low-power modes enable battery-powered multimeters or data loggers with 16KB flash for calibration data.
Smart Home Controllers
GPIO-rich 48-pin package suits lighting or HVAC zone controllers, with POR and WDT ensuring safe startup and fault recovery.
Automation I/O Modules
Industrial PLC I/O cards benefit from 48MHz speed and temp sensor for thermal monitoring in -40°C to 85°C environments.
Consumer Appliances
Cost-effective 16KB flash and 12KB RAM handle UI logic, PWM dimming, and safety interlocks in washing machines or microwaves.
- Q: What is the operating voltage range?
- A: 2V to 3.6V.
- Q: What is the maximum CPU speed?
- A: 48MHz.
- Q: How much flash and RAM does it have?
- A: 16KB flash and 12KB RAM.
- Q: What package is available?
- A: 48-LQFP.
- Q: Does it include a temperature sensor?
- A: Yes, it has an internal temp sensor.
