STMicroelectronics STM32F051R8H6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.25 | $8.25 |
| 15+ | $1.90 | $28.50 |
| 25+ | $1.85 | $46.25 |
| 50+ | $1.75 | $87.50 |
| 100+ | $1.55 | $155.00 |
| N+ | $0.31 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F0 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Number of I/O | 55 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 19x12b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

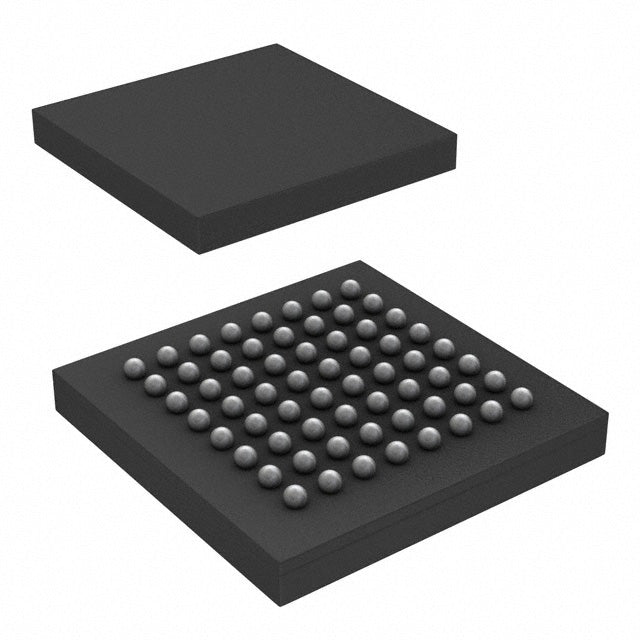

| Supplier Device Package | 64-UFBGA (5x5) |
| Package / Case | 64-UFBGA |
| ROHS |  |
The STMicroelectronics STM32F051R8H6 is a 32-bit ARM Cortex-M0 microcontroller. It operates at 48MHz with 64KB flash and 8K RAM. The 64-UFBGA package is ultra-compact for space-limited designs. It supports 2V to 3.6V supply and includes DMA, I2S, POR, PWM, and WDT. Operating temperature ranges from -40°C to 85°C.
- Compact Package: 64-UFBGA saves significant board space.
- Rich Peripherals: I2S, DMA, and PWM for versatile applications.
- Cost-Effective: ARM M0 core at 48MHz offers good performance per dollar.
- Low Power: Suitable for battery-operated devices with 2V operation.
Consumer Audio
I2S interface and 48MHz core enable high-quality audio processing in portable speakers.
Industrial Drives
PWM and DMA support efficient motor control in variable frequency drives.
Smart Appliances
64KB flash and 8K RAM handle user interfaces and sensor management in washing machines.
IoT Gateways
Low-power modes and robust peripherals suit home automation hubs.
Medical Monitoring
Compact UFBGA package and reliable operation support wearable health devices.
Lighting Control
High-resolution PWM enables smooth dimming in LED drivers.
- Q: What core does the STM32F051R8H6 use?
- A: It uses the ARM Cortex-M0 processor running at 48MHz.
- Q: What is the supply voltage range?
- A: It operates from 2V to 3.6V.
- Q: How much flash and RAM does it have?
- A: It has 64KB flash and 8K RAM.
- Q: What package is available?
- A: It comes in a 64-UFBGA package.
- Q: Does it include I2S and DMA?
- A: Yes, it features DMA, I2S, POR, PWM, and WDT.
