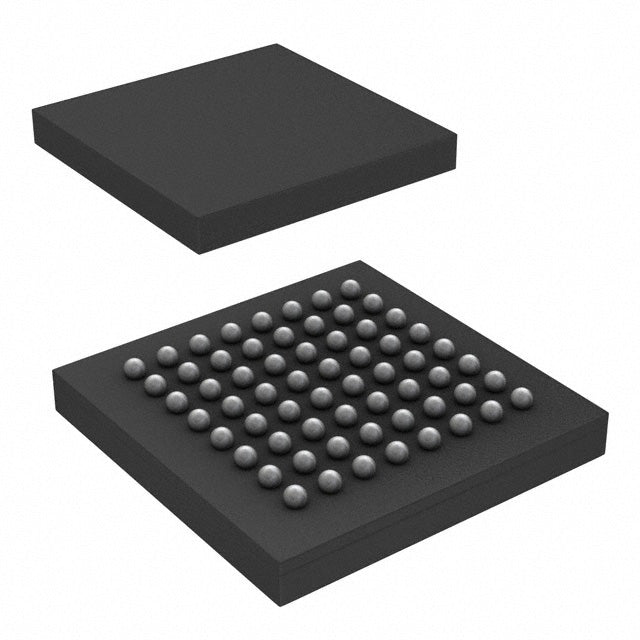

STMicroelectronics STM32F051R8H6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.13 | $8.13 |
| 15+ | $1.87 | $28.05 |
| 25+ | $1.83 | $45.75 |
| 50+ | $1.73 | $86.50 |
| 100+ | $1.52 | $152.00 |
| N+ | $0.30 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F0 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Number of I/O | 55 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 19x12b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-UFBGA (5x5) |
| Package / Case | 64-UFBGA |
| ROHS |  |
The STM32F051R8H6TR is a cost-effective 32-bit microcontroller from STMicroelectronics, featuring an ARM Cortex-M0 core at 48MHz. It offers 64KB flash and 8KB SRAM, providing sufficient resources for control and monitoring tasks. Its 2V to 3.6V supply range and compact 64-UFBGA package make it suitable for space-constrained embedded systems.
- Compact footprint: 64-UFBGA package saves PCB area for miniaturized designs.
- Efficient processing: 48MHz Cortex-M0 core balances performance and power consumption.
- Rich timer set: Multiple PWM channels enable precise motor and lighting control.
- Proven ecosystem: Full STM32Cube support accelerates development.
Consumer Appliances
The 48MHz Cortex-M0 core with PWM and DMA handles user interfaces and motor control in washing machines or dishwashers.
Industrial Automation
With 64KB flash and robust I/O, it can manage simple PLC I/O modules or sensor relays.
Power Tools
Its 2V-3.6V range and PWM outputs support brushless motor drivers in cordless drills.
Lighting Systems
DMA and PWM enable smooth dimming and color control in LED drivers.
HVAC Controllers
The I2S interface allows audio feedback, while multiple timers manage fan speed and temperature sensing.
Medical Devices
Compact 64-UFBGA package fits portable diagnostic tools like glucose meters.
- Q: What core does the STM32F051R8H6TR use?
- A: It uses the ARM Cortex-M0 core at 48MHz.
- Q: What is the memory configuration?
- A: It has 64KB flash and 8KB SRAM.
- Q: What is the supply voltage range?
- A: It operates from 2V to 3.6V.
- Q: What package is this device available in?
- A: It comes in a 64-UFBGA package.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 85°C.
