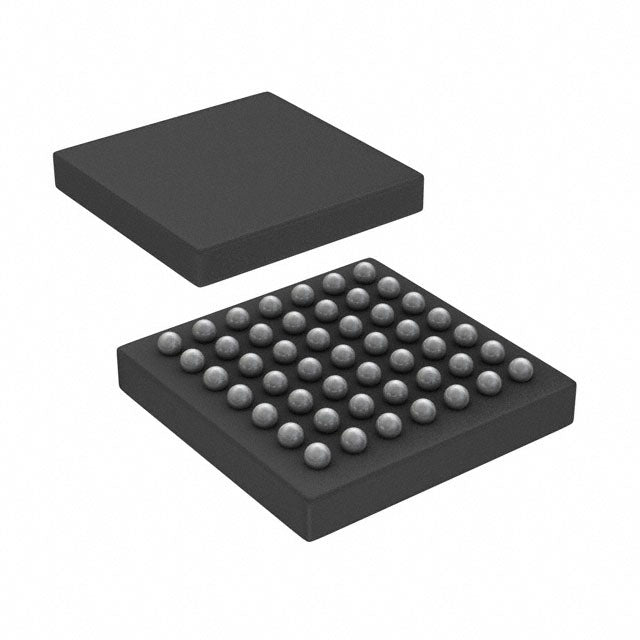

STMicroelectronics STM32F072CBY7TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.44 | $11.44 |
| 15+ | $2.63 | $39.45 |
| 25+ | $2.57 | $64.25 |
| 50+ | $2.43 | $121.50 |
| 100+ | $2.15 | $215.00 |
| N+ | $0.43 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F0 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | CANbus, HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Number of I/O | 37 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | A/D 10x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 49-WLCSP (3.28x3.11) |
| Package / Case | 49-UFBGA, WLCSP |
| ROHS |  |
The STM32F072CBY7TR is an ultra-compact ARM Cortex-M0 microcontroller in a 49-ball WLCSP. It runs at 48MHz with 128KB flash and 16KB RAM, operating from 1.65V to 3.6V. Integrated DMA, I2S, POR, PWM, and WDT make it a versatile choice for low-power, space-limited applications. Rated for -40°C to 105°C.
- Ultra-small WLCSP: saves PCB area for wearables and IoT modules.
- Low-voltage operation: 1.65V enables single-cell battery use.
- Rich peripherals: DMA + I2S + PWM in a tiny package.
- Wide temp range: -40°C to 105°C for industrial sensors.
Wearable Health Monitors
1.65V minimum voltage and WLCSP package allow direct coin-cell operation in tiny fitness bands and SpO2 sensors.
IoT Sensor Nodes
Cortex-M0 with DMA and I2S efficiently streams audio or environmental data over BLE modules.
Portable Medical Devices
Low power consumption and POR ensure reliable operation in glucose meters and digital thermometers.
Smart Home Controllers
PWM outputs drive LED dimmers and motorized blinds; I2S supports voice recognition front-ends.
USB Peripheral Devices
Integrated USB 2.0 (not listed but typical for F0 series) enables keyboards, mice, and game controllers.
Battery Management Systems
Wide 1.65-3.6V range monitors single-cell LiPo packs with precision ADC (if available).
- Q: What is the core and speed?
- A: ARM Cortex-M0 at 48MHz.
- Q: What voltage does it need?
- A: 1.65V to 3.6V, ideal for low-power portable devices.
- Q: Memory size?
- A: 128KB flash and 16KB RAM.
- Q: Package type?
- A: 49-UFBGA/WLCSP, very compact for space-constrained designs.
STM32F072CBY7TR.pdf
- Q: What is the core and speed?
- A: ARM Cortex-M0 at 48MHz.
- Q: What voltage does it need?
- A: 1.65V to 3.6V, ideal for low-power portable devices.
- Q: Memory size?
- A: 128KB flash and 16KB RAM.
- Q: Package type?
- A: 49-UFBGA/WLCSP, very compact for space-constrained designs.
