STMicroelectronics STM32F072V8H6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.62 | $10.62 |
| 15+ | $2.44 | $36.60 |
| 25+ | $2.39 | $59.75 |
| 50+ | $2.25 | $112.50 |
| 100+ | $1.99 | $199.00 |
| N+ | $0.40 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F0 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | CANbus, HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Number of I/O | 87 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

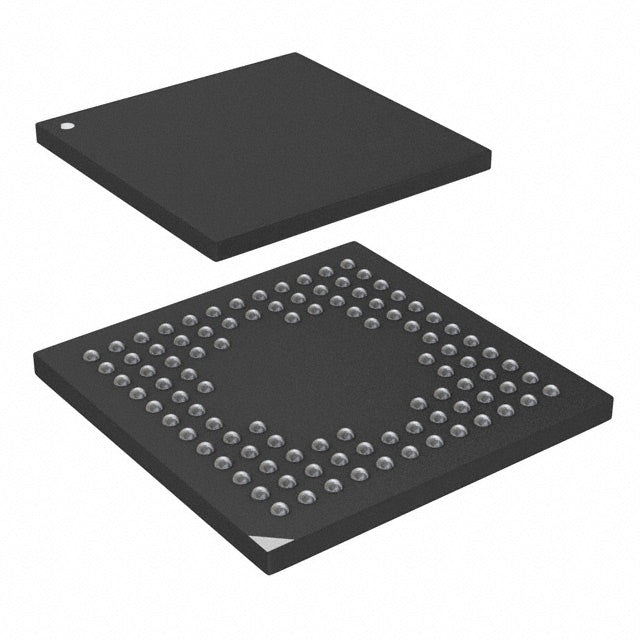

| Supplier Device Package | 100-UFBGA (7x7) |
| Package / Case | 100-UFBGA |
The STM32F072V8H6 is a 32-bit ARM Cortex-M0 microcontroller from STMicroelectronics, running at 48MHz. It features 64KB flash and 16KB RAM in a 100-UFBGA package. Operating from 1.65V to 3.6V, it is designed for power-sensitive and industrial applications. Integrated DMA, I2S, PWM, and WDT peripherals provide a complete solution for control and communication tasks.
- High pin count (100-UFBGA) – enables complex I/O and peripheral expansion.
- Low voltage operation (1.65V) – extends battery life in portable equipment.
- Comprehensive peripheral set – DMA, I2S, PWM reduce external components.
- Industrial temperature range – reliable from -40°C to 85°C.
Industrial PLC I/O Modules
100-pin BGA provides many GPIOs for parallel I/O and communication interfaces.
Building Automation Controllers
DMA and PWM enable efficient HVAC valve control and lighting dimming.
Medical Monitoring Systems
Low voltage operation and multiple timers support patient vital sign acquisition.
Robotics Control Boards
48MHz processing and rich peripherals handle servo control and sensor fusion.
Smart Metering Infrastructure
Wide voltage tolerance and robust WDT ensure reliable utility metering.
Test & Measurement Equipment
High pin count allows parallel data acquisition from multiple sensors.
- Q: What core does it use?
- A: ARM Cortex-M0 at 48MHz.
- Q: What is the memory configuration?
- A: 64KB flash and 16KB RAM.
- Q: What package is offered?
- A: 100-UFBGA, suitable for high-pin-count designs.
- Q: What is the supply voltage range?
- A: 1.65V to 3.6V.
- Q: What temperature range is supported?
- A: -40°C to 85°C.
STM32F072V8H6.pdf
- Q: What core does it use?
- A: ARM Cortex-M0 at 48MHz.
- Q: What is the memory configuration?
- A: 64KB flash and 16KB RAM.
- Q: What package is offered?
- A: 100-UFBGA, suitable for high-pin-count designs.
- Q: What is the supply voltage range?
- A: 1.65V to 3.6V.
- Q: What temperature range is supported?
- A: -40°C to 85°C.
