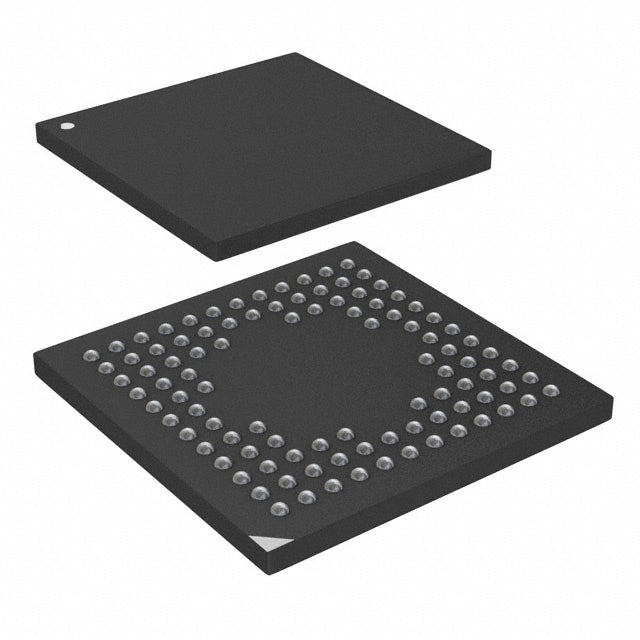

STMicroelectronics STM32F072VBH7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.59 | $12.59 |
| 15+ | $2.90 | $43.50 |
| 25+ | $2.84 | $71.00 |
| 50+ | $2.68 | $134.00 |
| 100+ | $2.36 | $236.00 |
| N+ | $0.47 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F0 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core |
| Speed | 48MHz |
| Connectivity | CANbus, HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Number of I/O | 87 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-UFBGA (7x7) |
| Package / Case | 100-UFBGA |
| ROHS |  |
The STM32F072VBH7 is a 32-bit ARM Cortex-M0 microcontroller from STMicroelectronics, running at 48MHz. It provides 128KB flash and 16KB RAM, with a supply range of 1.65V to 3.6V. Integrated DMA, I2S, POR, PWM, and WDT support rich peripheral connectivity. Housed in a 100-UFBGA, it operates from -40°C to 105°C for industrial and audio applications.
- ARM Cortex-M0 core – industry-standard architecture with broad tool support.
- DMA controller – reduces CPU load for high-throughput data.
- Wide temperature range (-40°C to 105°C) – reliable in extreme environments.
- I2S interface – enables direct digital audio connectivity.
Industrial Automation Controllers
The 48MHz Cortex-M0 with DMA offloads data transfer, enabling fast PLC I/O handling.
Audio Processing Modules
I2S interface supports digital audio streaming for smart speakers or soundbars.
Smart Home Gateways
128KB flash allows running multiple protocol stacks (Zigbee, Thread) with room for updates.
Motor Control Drives
PWM timers and 105°C rating make it suitable for variable frequency drives in harsh environments.
Portable Medical Devices
Low power modes and 1.65V operation extend battery life in wearable monitors.
Test & Measurement Equipment
High-speed ADC and DMA enable precise data acquisition in oscilloscopes or loggers.
- Q: What core does the STM32F072VBH7 use?
- A: It uses the ARM Cortex-M0 core at 48MHz.
- Q: What is the memory configuration?
- A: It has 128KB flash and 16KB RAM.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C, suitable for industrial.
- Q: Does it support DMA and I2S?
- A: Yes, it includes DMA, I2S, POR, PWM, and WDT.
- Q: What package is this?
- A: It is available in a 100-pin UFBGA package.
