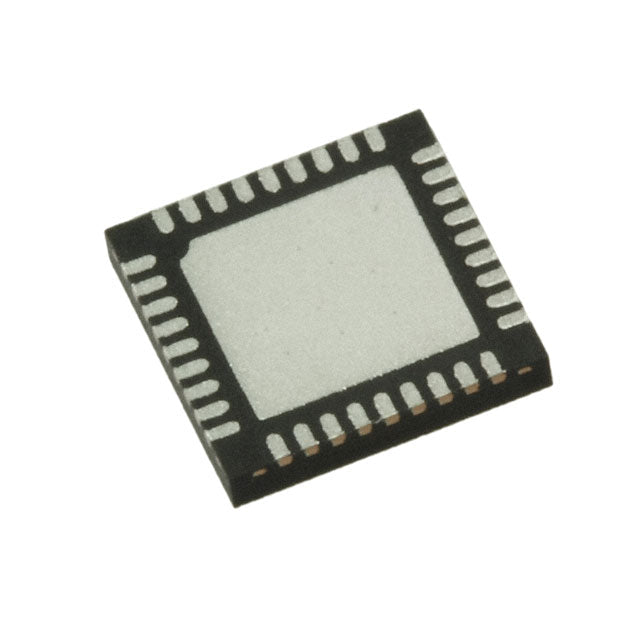

STMicroelectronics STM32F101T4U6A
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.84 | $9.84 |
| 15+ | $2.26 | $33.90 |
| 25+ | $2.21 | $55.25 |
| 50+ | $2.09 | $104.50 |
| 100+ | $1.85 | $185.00 |
| N+ | $0.37 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 36MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 26 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 36-VFQFPN (6x6) |
| Package / Case | 36-VFQFN Exposed Pad |
| ROHS |  |
The STM32F101T4U6A from STMicroelectronics is a 36 MHz ARM Cortex-M3 MCU with 16KB flash and 4KB RAM. It includes DMA, PWM, PVD, and a temperature sensor, all in a compact 36-VFQFN package. Operating from 2V to 3.6V, it suits cost-sensitive control and monitoring applications.
- ARM Cortex-M3 core: High performance with extensive toolchain support.
- Integrated temperature sensor: Monitors die temperature without external parts.
- DMA controller: Reduces CPU intervention for data transfers.
- Compact 36-pin package: Ideal for space-limited PCBs.
Motor Control for Small Appliances
The 36 MHz Cortex-M3 with PWM and DMA enables efficient BLDC motor commutation in fans or pumps.
Industrial Timer/Counter
With PVD and POR, it provides reliable timing in factory automation equipment.
Sensor Conditioning Board
The temperature sensor and DMA allow continuous data logging from analog sensors.
Battery-Powered Remote
Low-power modes and 2V operation extend battery life in consumer remotes.
LED Lighting Controller
PWM channels drive multiple LED strings with precise dimming control.
Simple Data Logger
4KB RAM and DMA support buffered storage of sensor readings to external EEPROM.
- Q: What is the core processor?
- A: It uses an ARM Cortex-M3 running at 36 MHz.
- Q: What is the program memory size?
- A: It has 16KB flash and 4KB RAM.
- Q: What is the supply voltage?
- A: It operates from 2V to 3.6V.
- Q: Does it include DMA and PWM?
- A: Yes, it features DMA, PWM, PVD, POR, and a temperature sensor.
- Q: What package is available?
- A: It comes in a 36-VFQFN exposed pad package.
