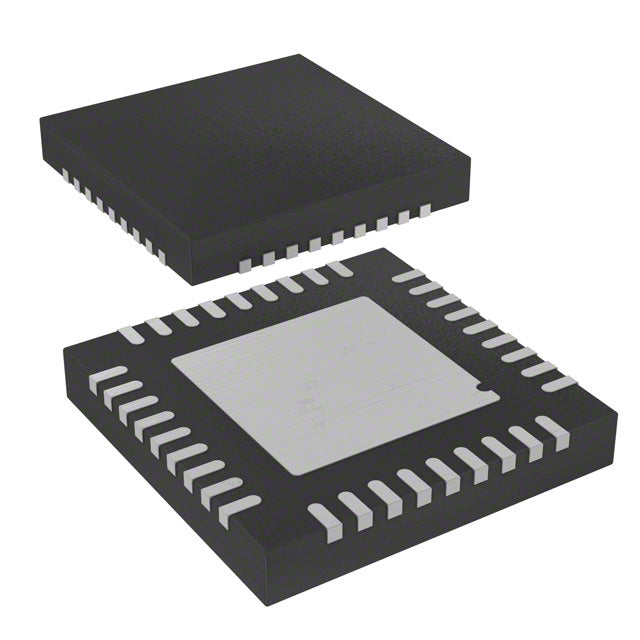

STMicroelectronics STM32F101T6U6ATR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.53 | $10.53 |
| 15+ | $2.42 | $36.30 |
| 25+ | $2.37 | $59.25 |
| 50+ | $2.24 | $112.00 |
| 100+ | $1.97 | $197.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 36MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 26 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 6K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 36-VFQFPN (6x6) |
| Package / Case | 36-VFQFN Exposed Pad |
| ROHS |  |
The STM32F101T6U6ATR from STMicroelectronics is a cost-effective ARM Cortex-M3 microcontroller designed for general-purpose embedded control. It operates at 36MHz with 32KB flash and 6KB SRAM, supporting a wide 2V to 3.6V supply range. The device includes essential peripherals such as DMA, PWM, and a temperature sensor, all housed in a compact 36-VFQFN package for space-constrained applications.
- Efficient 32-bit processing: The Cortex-M3 core delivers high performance at 36MHz, enabling complex control algorithms.
- Wide voltage flexibility: The 2V-3.6V range supports both 3.3V and 2V systems, simplifying power design.
- Compact footprint: The 36-VFQFN package saves PCB space, ideal for miniaturized devices.
- Integrated safety features: PDR, POR, and PVD protect against power anomalies, enhancing system reliability.
Industrial Sensor Nodes
The 2V-3.6V supply and low-power modes enable reliable operation in field transmitters and sensor hubs, with the 36MHz Cortex-M3 handling protocol stacks efficiently.
Portable Medical Monitors
With 32KB flash and 6KB RAM, it can run basic patient monitoring algorithms while the PVD ensures safe shutdown during battery depletion.
Motor Control for Small Appliances
The integrated PWM and DMA allow smooth generation of control signals for brushless DC motors in fans and pumps, reducing CPU load.
Smart Home Controllers
Its compact VFQFN package and wide voltage range make it easy to embed in wall switches and thermostat controllers with minimal external components.
Battery Management Systems
The PDR and POR features protect against brownouts, making it suitable for monitoring cell voltages in small battery packs.
Data Loggers
The temperature sensor and WDT enable autonomous logging in harsh environments, with the 36MHz speed supporting quick data processing.
- Q: What is the operating voltage range of the STM32F101T6U6ATR?
- A: It operates from 2V to 3.6V, making it suitable for battery-powered applications.
- Q: What core does this MCU use?
- A: It is based on the ARM Cortex-M3 core running at up to 36MHz.
- Q: How much flash and RAM does it have?
- A: It provides 32KB of flash memory and 6KB of SRAM.
- Q: What package is available?
- A: It comes in a 36-VFQFN exposed pad package, ideal for compact designs.
- Q: Does it include PWM and analog features?
- A: Yes, it includes PWM, DMA, PDR, POR, PVD, and a temperature sensor.
