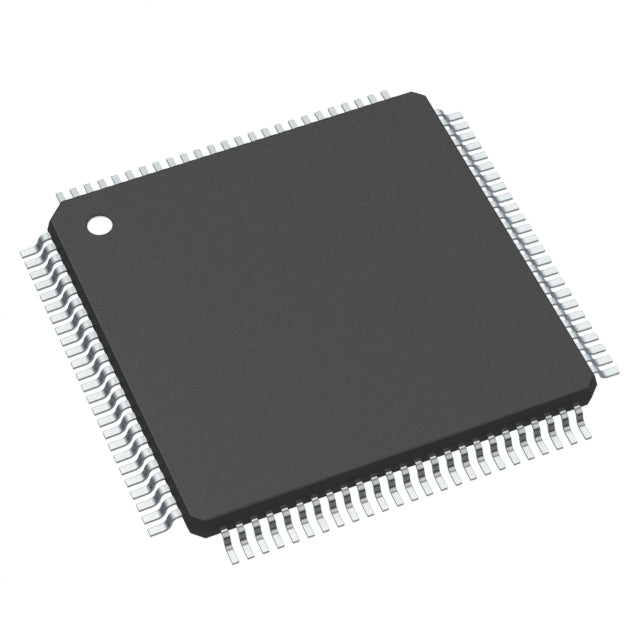

STMicroelectronics STM32F101VBT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.86 | $6.86 |
| 15+ | $4.51 | $67.65 |
| 25+ | $4.41 | $110.25 |
| 50+ | $4.17 | $208.50 |
| 100+ | $3.68 | $368.00 |
| N+ | $0.74 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 36MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 80 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-LQFP (14x14) |
| Package / Case | 100-LQFP |
| ROHS |  |
The STM32F101VBT6 from STMicroelectronics is a 32-bit microcontroller built on the ARM Cortex-M3 core, running at 36MHz. It provides 128KB of flash memory and 16KB of SRAM, making it suitable for a wide range of embedded applications. With a supply voltage range of 2V to 3.6V and an operating temperature range of -40°C to 85°C, it is designed for reliable performance in demanding environments. The 100-pin LQFP package offers extensive I/O capabilities, while integrated peripherals such as DMA, PWM timers, and a temperature sensor enhance system integration.
- Efficient 32-bit processing: The ARM Cortex-M3 core at 36MHz delivers high performance for control and data processing tasks.
- Large memory capacity: 128KB flash and 16KB SRAM support complex applications without external memory.
- Wide voltage range: 2V to 3.6V operation enables use in both 3.3V and battery-powered systems.
- Rich peripheral set: DMA, PWM, WDT, and temperature sensor reduce external component count.
- Robust protection: PDR and POR circuits ensure safe power-up and power-down sequences.
Industrial Control Systems
The 36MHz ARM Cortex-M3 core with 128KB flash provides ample processing for PLCs and industrial sensors, while the 2V-3.6V range allows flexible power supply design.
Motor Drive Applications
Integrated PWM timers and DMA controllers enable efficient generation of complex motor control waveforms, reducing CPU overhead.
Portable Medical Devices
Low power consumption and a wide voltage range support battery-operated diagnostic tools, with the temperature sensor aiding in patient monitoring.
Building Automation
The 100-pin LQFP package offers multiple I/Os for HVAC controllers and lighting systems, with WDT ensuring reliable long-term operation.
Data Logging Systems
With 128KB flash and DMA, the MCU can buffer sensor data efficiently, while PDR/POR circuits protect against power glitches.
Consumer Electronics
The Cortex-M3 core at 36MHz handles user interface tasks in appliances, with the -40°C to 85°C range suitable for most home environments.
- Q: What is the maximum operating frequency of the STM32F101VBT6?
- A: The STM32F101VBT6 operates at up to 36 MHz.
- Q: What is the supply voltage range?
- A: It operates from 2V to 3.6V.
- Q: How much flash memory and RAM does it have?
- A: It has 128KB of flash and 16KB of SRAM.
- Q: What package is available?
- A: It comes in a 100-pin LQFP package.
- Q: Does it include a PWM controller?
- A: Yes, it includes PWM timers along with DMA, WDT, and a temperature sensor.
