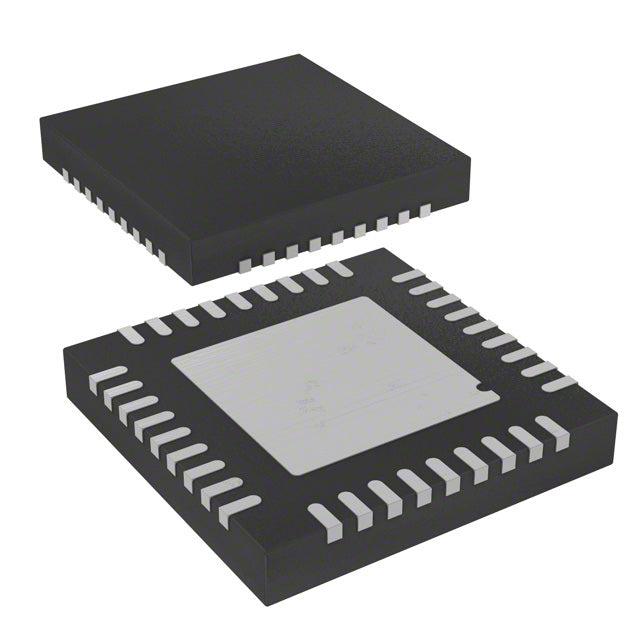

STMicroelectronics STM32F103TBU6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.66 | $9.66 |
| 15+ | $6.35 | $95.25 |
| 25+ | $6.21 | $155.25 |
| 50+ | $5.87 | $293.50 |
| 100+ | $5.18 | $518.00 |
| N+ | $1.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F1 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 72MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| Number of I/O | 26 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 20K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 36-VFQFPN (6x6) |
| Package / Case | 36-VFQFN Exposed Pad |
| ROHS |  |
The STMicroelectronics STM32F103TBU6TR is a 32-bit MCU based on the ARM Cortex-M3 core at 72 MHz. It offers 128KB Flash and 20KB RAM, with features like motor control PWM, DMA, PVD, and a temperature sensor. Operating from 2V to 3.6V and -40°C to 85°C, it comes in a 36-VFQFN package, ideal for motor control, power management, and industrial applications.
- 72 MHz ARM Cortex-M3: High performance for real-time control and signal processing.
- Motor control PWM timers: Dedicated hardware simplifies complex motor drive algorithms.
- Comprehensive protection: PDR, POR, PVD, and WDT enhance system reliability.
- Compact 36-VFQFN package: Suitable for space-limited designs without sacrificing functionality.
Motor Control Drives
Dedicated motor control PWM timers and 72 MHz core enable precise field-oriented control of BLDC motors.
Power Supply Management
PVD and POR features ensure safe startup and shutdown in switch-mode power supplies.
Industrial Automation
Rich peripheral set and robust protection make it suitable for PLCs and industrial sensors.
Consumer Appliances
Cost-effective 36-VFQFN package and integrated features suit washing machines and air conditioners.
Medical Monitoring
Temp sensor and low-power modes support patient monitoring devices with temperature logging.
Robotics
Multiple PWM channels and DMA enable servo control and sensor fusion in small robots.
- Q: What is the maximum clock speed?
- A: The STM32F103TBU6TR runs at up to 72 MHz.
- Q: What are the key features?
- A: It includes DMA, motor control PWM, PDR, POR, PVD, PWM, temp sensor, and WDT.
- Q: What is the supply voltage?
- A: It operates from 2V to 3.6V.
- Q: How much Flash and RAM does it have?
- A: It has 128KB Flash and 20KB RAM.
