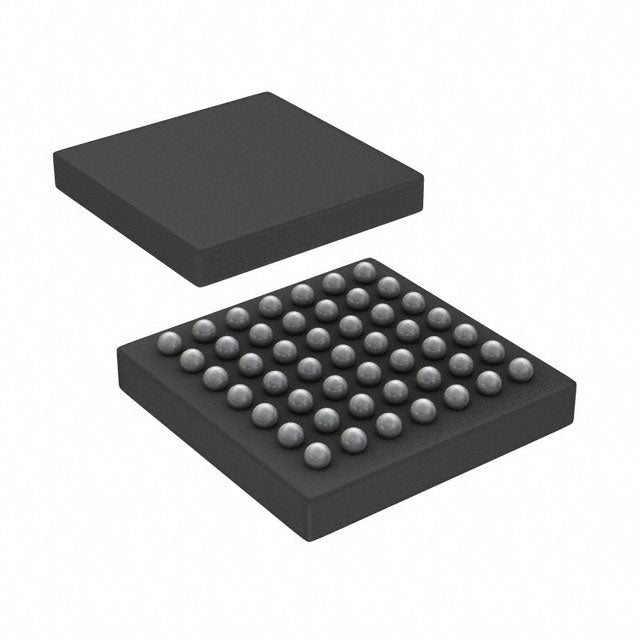

STMicroelectronics STM32F318C8Y6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.03 | $11.03 |
| 15+ | $2.54 | $38.10 |
| 25+ | $2.48 | $62.00 |
| 50+ | $2.35 | $117.50 |
| 100+ | $2.07 | $207.00 |
| N+ | $0.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F3 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 72MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Number of I/O | 19 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 1.95V, 1.65V ~ 3.6V |
| Data Converters | A/D 11x12b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 49-WLCSP |
| Package / Case | 49-UFBGA, WLCSP |
| ROHS |  |
The STM32F318C8Y6TR is a dual-voltage ARM Cortex-M4 microcontroller from STMicroelectronics. It runs at 72MHz with 64KB flash and 16KB RAM. The device supports a core supply of 1.65V-1.95V and I/O supply of 1.65V-3.6V, enabling ultra-low-power operation. It includes DMA, I2S, PWM, and WDT in a 49-ball WLCSP package, ideal for energy-constrained applications.
- Dual voltage domains: Core and I/O can operate at different voltages for maximum power efficiency.
- Ultra-low core voltage: 1.65V operation reduces dynamic power consumption significantly.
- Compact WLCSP: 49-ball package saves space in miniaturized IoT devices.
- Versatile peripherals: DMA, I2S, and PWM support diverse applications from audio to control.
Energy Harvesting Systems
The low core voltage (1.65V) allows direct operation from single-cell solar or TEG sources.
Battery-Powered Wearables
Dual voltage domains optimize power consumption for sensors and wireless transceivers.
Portable Medical Monitors
Low voltage operation and compact WLCSP enable small, low-power ECG or SpO2 devices.
Smart Building Controllers
I2S and PWM support environmental sensing and lighting control with minimal energy use.
IoT Edge Nodes
Flexible I/O voltage simplifies interfacing with 1.8V or 3.3V sensors and radios.
Precision Analog Front-Ends
Stable low-voltage core reduces noise for high-resolution ADC applications.
- Q: What is the unique voltage feature of STM32F318C8Y6TR?
- A: It supports dual supply: 1.65V-1.95V for core and 1.65V-3.6V for I/O.
- Q: What core does it use?
- A: It uses an ARM Cortex-M4 at 72MHz.
- Q: How much flash and RAM does it have?
- A: It has 64KB flash and 16KB RAM.
- Q: What package is available?
- A: It comes in a 49-UFBGA (WLCSP) package.
- Q: Does it support DMA and PWM?
- A: Yes, it includes DMA, I2S, POR, PWM, and WDT.
