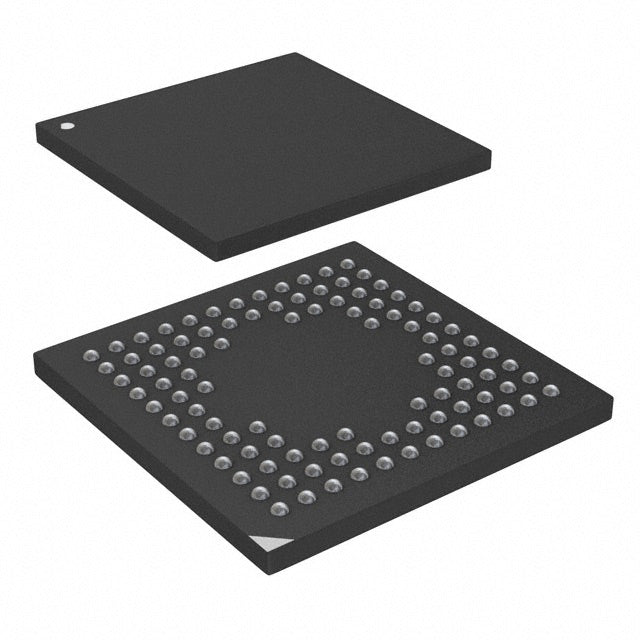

STMicroelectronics STM32F373VCH7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $22.98 | $22.98 |
| 15+ | $5.28 | $79.20 |
| 25+ | $5.17 | $129.25 |
| 50+ | $4.88 | $244.00 |
| 100+ | $4.31 | $431.00 |
| N+ | $0.86 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F3 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 72MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | DMA, I2S, POR, PWM, WDT |
| Number of I/O | 84 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
| Data Converters | A/D 1x12b, 3x16b; D/A 3x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-UFBGA (7x7) |
| Package / Case | 100-UFBGA |
| ROHS |  |
The STMicroelectronics STM32F373VCH7 is a 32-bit microcontroller with an ARM Cortex-M4 core with FPU at 72MHz. It provides 256KB flash and 32KB RAM, operating from 2V to 3.6V. The 100-UFBGA package is ideal for compact, high-density designs. Integrated DMA, I2S, POR, PWM, and WDT support advanced audio, motor control, and industrial applications. Its FPU accelerates mathematical operations for real-time control.
- Floating-point unit accelerates complex algorithms like FFT and PID control.
- I2S interface simplifies digital audio connectivity with external codecs.
- 256KB flash allows rich application code with room for future updates.
- Compact 100-UFBGA package saves board space for portable devices.
Audio Processing Units
The Cortex-M4 with FPU and I2S interface enables high-fidelity audio codec processing for smart speakers.
Industrial Drives
With 72MHz and PWM, it controls servo drives with precise torque loops, using FPU for real-time calculations.
Medical Imaging
The 256KB flash and 32KB RAM support portable ultrasound front-end processing, with DMA for high-speed ADC data.
Smart Grid Protection
Its 2V-3.6V range and WDT ensure reliable operation in protective relays, monitoring voltage and current.
Robotics Controllers
The 100-UFBGA package provides compact I/O for multi-axis robot arms, with FPU handling inverse kinematics.
Automotive Infotainment
Operating at -40 to 105°C, it manages touch interfaces and audio routing in head units.
- Q: What core does the STM32F373VCH7 use?
- A: It uses an ARM Cortex-M4 core with FPU at 72MHz.
- Q: How much flash and RAM does it have?
- A: It has 256KB flash and 32KB RAM.
- Q: What is the supply voltage range?
- A: It operates from 2V to 3.6V.
- Q: What package is available?
- A: It comes in a 100-UFBGA package.
- Q: What integrated features does it include?
- A: It includes DMA, I2S, POR, PWM, and WDT.
