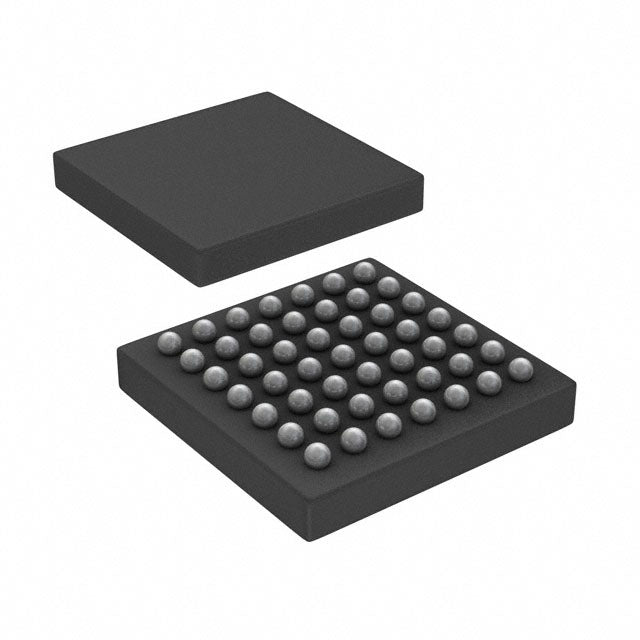

STMicroelectronics STM32F401CEY6BTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | | Tape & Reel (TR) |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 84MHz |
| Connectivity | I2C, IrDA, LINbus, SDIO, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 36 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 96K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 10x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 49-WLCSP (2.97x2.97) |
| Package / Case | 49-UFBGA, WLCSP |
| ROHS |  |
The STM32F401CEY6BTR is a powerful ARM Cortex-M4 microcontroller from STMicroelectronics, operating at 84 MHz. It features 512KB of flash memory and 96KB of SRAM, with a supply voltage range of 1.7V to 3.6V. Packaged in a compact 49-pin UFBGA/WLCSP, it includes DMA, I2S, PWM, POR, and watchdog timers, providing a balanced solution for advanced embedded applications.
- Large Flash Capacity: 512KB of flash enables complex firmware and data logging.
- Increased SRAM: 96KB of SRAM supports more demanding real-time applications.
- Ultra-Compact Package: The 49-WLCSP is ideal for miniaturized products.
- Low Power with High Performance: 84MHz Cortex-M4 with 1.7V operation balances speed and efficiency.
Advanced Wearable Health Trackers
The 512KB flash allows storing complex algorithms and data logs, while the small WLCSP package fits into slim wearable designs.
Smart Home Controllers
With 84MHz processing and I2S for audio, it can manage voice commands and control multiple peripherals.
Industrial Sensor Hubs
DMA and multiple timers enable efficient collection and processing of data from various industrial sensors.
Portable Instrumentation
Low voltage operation and rich peripherals support battery-powered measurement tools with high accuracy.
Audio Accessories
The I2S interface and ample flash memory make it suitable for digital audio effects and processing.
Robotics Control Boards
PWM outputs and fast interrupt handling support precise motor and servo control in small robots.
- Q: What is the core and speed of this MCU?
- A: It uses an ARM Cortex-M4 core running at up to 84 MHz.
- Q: What are the memory sizes?
- A: It has 512KB of flash and 96KB of SRAM.
- Q: What is the operating voltage?
- A: The supply voltage range is 1.7V to 3.6V.
- Q: What package does it come in?
- A: It is available in a 49-pin UFBGA/WLCSP package.
- Q: What key peripherals are included?
- A: It includes DMA, I2S, PWM, POR, and watchdog timers.
