STMicroelectronics STM32F410TBY3TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $9.53 | $9.53 |
| 15+ | $2.19 | $32.85 |
| 25+ | $2.14 | $53.50 |
| 50+ | $2.02 | $101.00 |
| 100+ | $1.79 | $179.00 |
| N+ | $0.36 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 4x12b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 36-WLCSP (2.55x2.58) |
| Package / Case | 36-UFBGA, WLCSP |
| ROHS |  |

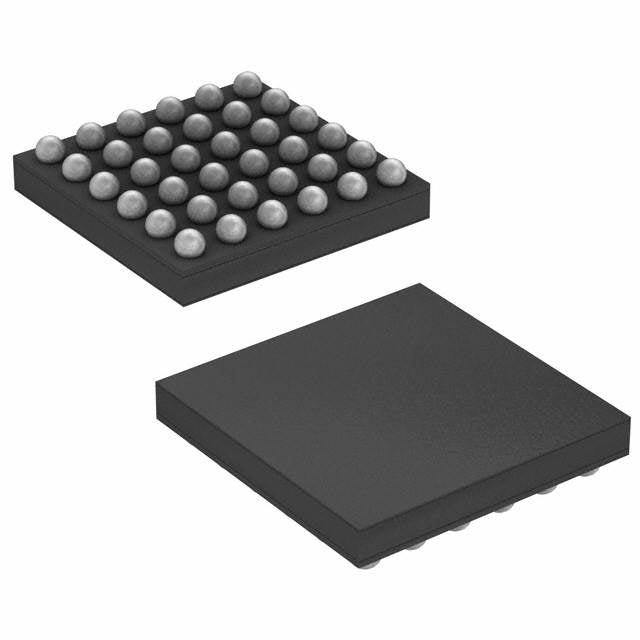

The STM32F410TBY3TR from STMicroelectronics is a high-performance 32-bit microcontroller based on the ARM Cortex-M4 core. It runs at 100MHz and offers 128KB of flash memory with 32KB of SRAM. The device supports a wide supply range from 1.7V to 3.6V and operates between -40°C and 125°C. It includes advanced peripherals such as DMA, I2S, PWM, watchdog timer, and brown-out detection. Packaged in a compact 36-pin UFBGA/WLCSP, it is ideal for space-constrained, high-reliability applications.
- 100MHz Cortex-M4 core – provides DSP instructions for complex signal processing.
- Wide temperature range (-40°C to 125°C) – suitable for automotive and industrial environments.
- Integrated I2S and DMA – enables efficient audio and sensor data transfer without CPU load.
- Low-voltage operation down to 1.7V – extends battery life in portable designs.
- Compact WLCSP package – minimizes footprint for wearable and IoT devices.
High-Performance Motor Control
The 100MHz Cortex-M4 with PWM and DMA enables advanced FOC algorithms for brushless DC motors in industrial drives.
Portable Medical Devices
With a wide temperature range and low-voltage operation down to 1.7V, it suits battery-powered diagnostic tools.
IoT Edge Nodes
The I2S interface and DMA support audio/sensor data streaming with low latency for smart home devices.
Automotive Body Electronics
Rated for 125°C, it handles harsh under-hood conditions for lighting or sensor modules.
Audio Processing
I2S peripheral allows direct connection to audio codecs for voice recognition or sound generation.
Power Management Units
Brown-out detection and POR ensure reliable sequencing in server power supplies.
- Q: What is the core and speed of STM32F410TBY3TR?
- A: It uses an ARM Cortex-M4 core running at 100MHz.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C.
- Q: How much flash and RAM are available?
- A: It has 128KB flash and 32KB RAM.
- Q: What package is this part?
- A: It comes in a 36-pin UFBGA/WLCSP package.
