STMicroelectronics STM32F410TBY7TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.87 | $8.87 |
| 15+ | $2.04 | $30.60 |
| 25+ | $2.00 | $50.00 |
| 50+ | $1.89 | $94.50 |
| 100+ | $1.67 | $167.00 |
| N+ | $0.33 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 4x12b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

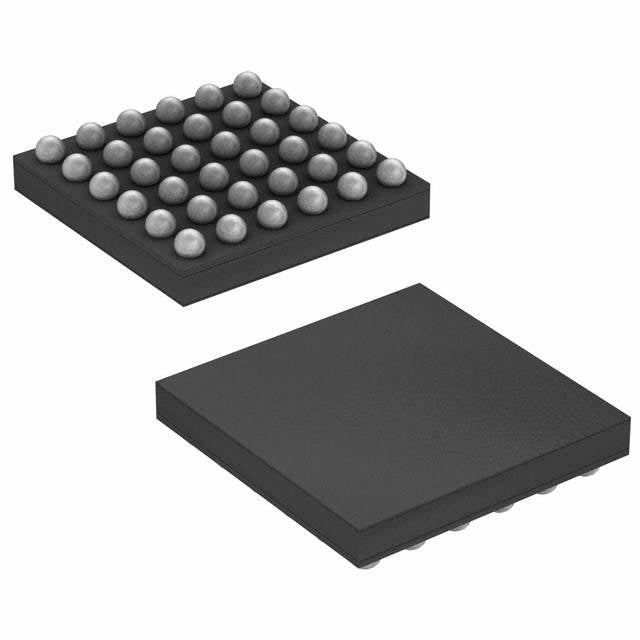

| Supplier Device Package | 36-WLCSP (2.55x2.58) |
| Package / Case | 36-UFBGA, WLCSP |
| ROHS |  |
The STMicroelectronics STM32F410TBY7TR is a 32-bit microcontroller based on the ARM Cortex-M4 core, operating at up to 100MHz. It provides 128KB of flash memory and 32KB of RAM, with a supply voltage range of 1.7V to 3.6V. The device includes brown-out detect/reset, DMA, I2S, POR, PWM, and WDT. Packaged in a 36-UFBGA or WLCSP, it is designed for ultra-compact, high-performance applications such as wearables, IoT devices, and portable medical equipment.
- High Performance: 100MHz Cortex-M4 core with DSP instructions accelerates complex computations.
- Ultra-Compact Package: 36-UFBGA/WLCSP reduces PCB area, enabling miniaturized product designs.
- Rich Audio Interface: Integrated I2S supports direct connection to audio codecs for high-fidelity sound.
- Low-Voltage Operation: 1.7V minimum supply allows operation from single-cell batteries or energy harvesting.
Wearable Audio Devices
The I2S interface supports high-quality digital audio streaming, while the 100MHz Cortex-M4 core handles audio processing algorithms. The WLCSP package minimizes board space for earbuds or smartwatches.
IoT Edge Nodes
With 128KB flash and 32KB RAM, it can run lightweight IoT protocols. The low-power modes and 1.7V operation enable battery-powered sensors.
Portable Medical Monitors
The DMA controller efficiently transfers sensor data without CPU intervention. The brown-out detect/reset ensures reliable operation during battery discharge.
Smart Home Controllers
The PWM outputs can drive LED dimmers or motor actuators. The compact 36-UFBGA package fits into small wall switches or smart plugs.
Industrial Sensor Interfaces
The 100MHz core provides fast processing for real-time data analysis. The WDT and POR enhance system robustness in noisy industrial environments.
Consumer Electronics
From smart toys to remote controls, the rich peripheral set and small footprint make it versatile. The wide temperature range up to 105°C supports various use cases.
- Q: What is the maximum clock speed of the STM32F410TBY7TR?
- A: The ARM Cortex-M4 core runs at up to 100MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V, supporting low-voltage designs.
- Q: How much flash and RAM does it have?
- A: It includes 128KB of flash and 32KB of RAM.
- Q: What package is this device available in?
- A: It comes in a 36-UFBGA or WLCSP package, ideal for ultra-compact designs.
- Q: What are the key integrated peripherals?
- A: It features brown-out detect/reset, DMA, I2S, POR, PWM, and WDT.
