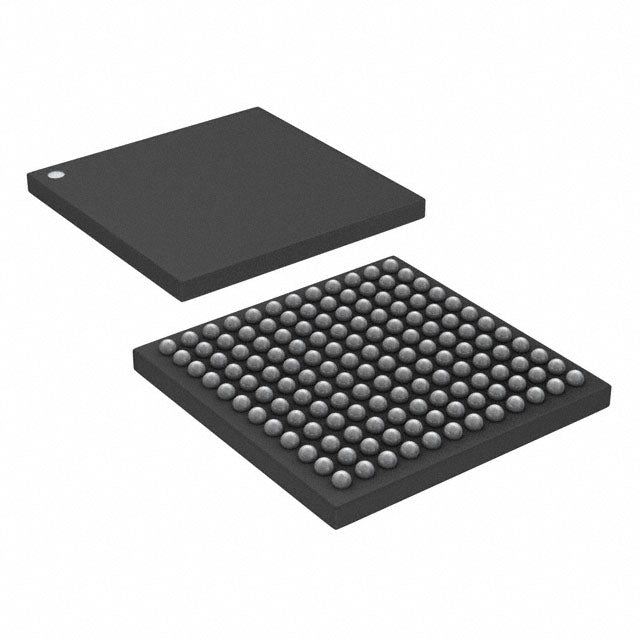

STMicroelectronics STM32F412ZGJ6TR
Normaler Preis
$27.89
Normaler Preis
$6.97
Verkaufspreis
$27.89
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $27.89 | $27.89 |
| 15+ | $6.41 | $96.15 |
| 25+ | $6.27 | $156.75 |
| 50+ | $5.92 | $296.00 |
| 100+ | $5.23 | $523.00 |
| N+ | $1.05 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 114 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-UFBGA (10x10) |
| Package / Case | 144-UFBGA |
| ROHS |  |
The STM32F412ZGJ6TR is a 32-bit ARM Cortex-M4 MCU with FPU, running at 100MHz with 1MB flash and 256KB SRAM. It integrates DMA, I2S, LCD controller, and brown-out detection in a 144-UFBGA package, operating from 1.7V to 3.6V.
- 1MB flash enables complex application code and data logging.
- Cortex-M4 FPU accelerates math-intensive DSP tasks.
- I2S interface supports high-quality audio applications.
- Low 1.7V operation extends battery life in portable devices.
High-End Consumer Electronics
1MB flash and 100MHz Cortex-M4 support rich GUI and audio processing.
Industrial HMI Panels
LCD controller and I2S enable touchscreen interfaces with audio feedback.
IoT Gateways
Large memory and DMA handle multiple protocol stacks concurrently.
Motor Control with DSP
Cortex-M4 FPU accelerates FOC algorithms for servo drives.
Portable Medical Devices
Low voltage (1.7V) and brown-out detection ensure safe battery operation.
Smart Grid Equipment
Robust peripherals and 256KB RAM support complex power monitoring.
- Q: What is the core architecture?
- A: ARM Cortex-M4 with FPU.
- Q: What is the maximum clock speed?
- A: 100MHz.
- Q: How much flash memory?
- A: 1MB.
- Q: What is the package type?
- A: 144-UFBGA.
Base Product Number ：
STM32F412ZGJ6
STM32F412ZGJ6TR.pdf
- Q: What is the core architecture?
- A: ARM Cortex-M4 with FPU.
- Q: What is the maximum clock speed?
- A: 100MHz.
- Q: How much flash memory?
- A: 1MB.
- Q: What is the package type?
- A: 144-UFBGA.
×
