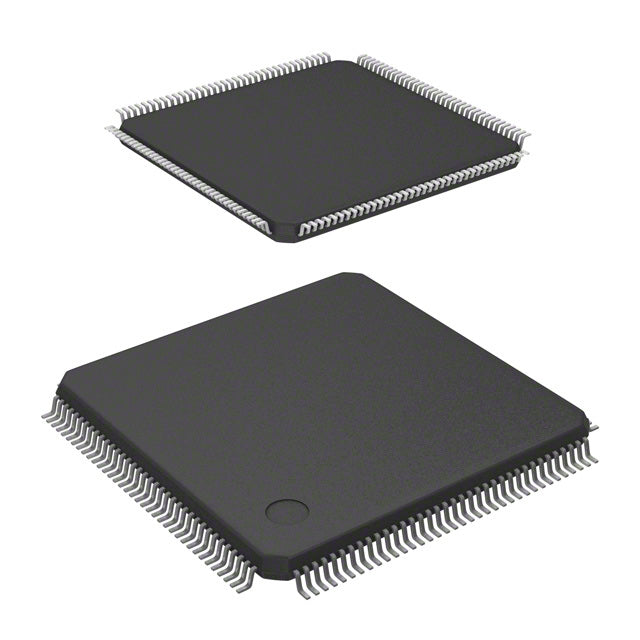

STMicroelectronics STM32F413ZHT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.82 | $18.82 |
| 15+ | $12.36 | $185.40 |
| 25+ | $12.10 | $302.50 |
| 50+ | $11.42 | $571.00 |
| 100+ | $10.08 | $1,008.00 |
| N+ | $2.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tray | Tray |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SDIO, QSPI, SAI, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 114 |
| Program Memory Size | 1.5MB (1.5M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-LQFP (20x20) |
| Package / Case | 144-LQFP |
| ROHS |  |
The STMicroelectronics STM32F413ZHT6 is a powerful 32-bit MCU built around the Arm Cortex-M4 core with FPU. Running at 100MHz, it offers 1.5MB flash and 320KB SRAM. It is designed for applications requiring rich user interfaces, audio, and high-speed connectivity, all in a compact 144-LQFP package.
- Large Memory: 1.5MB flash and 320KB SRAM support complex applications and data buffering.
- Rich Multimedia: Integrated LCD and I2S interfaces enable GUI and audio applications.
- High-Performance Core: The Cortex-M4 with FPU accelerates math-intensive tasks.
- Extensive Peripheral Set: Multiple timers, ADCs, and communication interfaces provide design flexibility.
High-End Consumer Appliances
Drive a graphical LCD and audio codec simultaneously using the 100MHz Cortex-M4 and I2S, creating a rich user interface for smart ovens or washing machines.
Industrial Gateway
With multiple UARTs, SPI, and CAN, this MCU can aggregate data from various sensors and machines, process it, and forward to a central SCADA system.
Medical Diagnostic Equipment
The large 1.5MB flash allows storing complex signal processing algorithms and patient data logs for portable diagnostic tools.
Building Automation Controller
Control HVAC, lighting, and access systems with the extensive timer and PWM resources, ensuring energy-efficient operation.
Audio Processing Node
Use the I2S interface and DMA to stream high-quality audio for professional sound systems or intercoms.
Robotics and Drones
The 320KB SRAM provides ample space for sensor fusion algorithms, while the PWM timers control multiple motors with precision.
- Q: What is the maximum clock speed?
- A: The Arm Cortex-M4 core runs at up to 100MHz.
- Q: How much flash memory is available?
- A: It has 1.5MB of flash memory.
- Q: Does it support LCD interfaces?
- A: Yes, it includes an LCD parallel interface and I2S for audio.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V.
- Q: What package is this?
- A: It comes in a 144-pin LQFP package.
