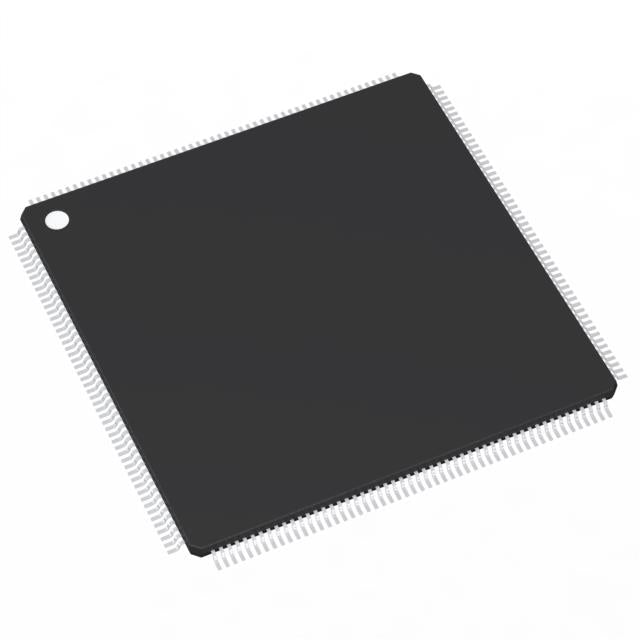

STMicroelectronics STM32F469BGT6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $44.04 | $44.04 |
| 15+ | $10.13 | $151.95 |
| 25+ | $9.91 | $247.75 |
| 50+ | $9.36 | $468.00 |
| 100+ | $8.26 | $826.00 |
| N+ | $1.65 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 161 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 384K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 208-LQFP (28x28) |
| Package / Case | 208-LQFP |
| ROHS |  |
The STMicroelectronics STM32F469BGT6 is a high-performance 32-bit microcontroller based on the ARM Cortex-M4 core with floating-point unit, running at 180 MHz. It offers 1 MB of flash memory and 384 KB of SRAM. This device features an integrated LCD controller, making it ideal for graphical applications. It also includes DMA, I2S, PWM, and multiple communication interfaces. Its wide voltage range and rich feature set make it a versatile choice for advanced embedded systems.
- Integrated LCD Controller: Directly drives TFT displays without external controller.
- High-Performance Core: 180 MHz Cortex-M4 with FPU for complex calculations.
- Large Memory: 1 MB flash and 384 KB SRAM for demanding applications.
- Rich Connectivity: Multiple communication interfaces for versatile system integration.
High-End Consumer Electronics
The Cortex-M4 core with FPU and LCD controller enables rich graphical user interfaces for smart appliances and wearable devices.
Medical Imaging Devices
With 1 MB flash and 384 KB RAM, it can handle image processing algorithms for portable ultrasound and diagnostic imaging equipment.
Industrial HMI Panels
The integrated LCD controller and high-speed processing make it ideal for industrial touchscreen interfaces with complex visualization.
Audio Processing Systems
The I2S interface and DSP instructions support high-quality audio processing for effects units and audio analyzers.
Smart Home Controllers
Its rich peripheral set and low power modes make it suitable for central home automation hubs managing lighting, HVAC, and security.
Robotics Vision Systems
The combination of high-speed processing, large memory, and camera interfaces enables real-time image processing for autonomous robots.
- Q: What core does the STM32F469BGT6 use?
- A: It is based on the ARM Cortex-M4 processor with FPU, running at 180 MHz.
- Q: Does it support graphical displays?
- A: Yes, it includes a built-in LCD controller (LTDC) for direct TFT display interfacing.
- Q: What is the memory configuration?
- A: It has 1 MB of flash and 384 KB of SRAM.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V, supporting battery-powered designs.
- Q: What package is available?
- A: It is available in a 208-pin LQFP package.
