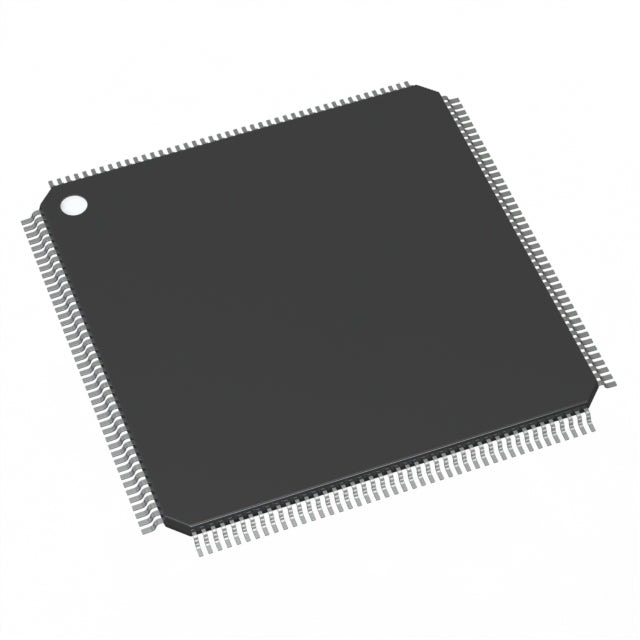

STMicroelectronics STM32F469IIT6E
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | | Tray |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 131 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 384K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Package / Case | 176-LQFP |
The STM32F469IIT6E is a premium ARM Cortex-M4 microcontroller from STMicroelectronics, featuring 2 MB Flash and 384 KB SRAM. Running at 180 MHz, it delivers exceptional performance for graphics-intensive and data-heavy applications. The 176-LQFP package offers extensive I/O, while the integrated LCD-TFT controller and rich peripherals make it a top choice for advanced embedded systems.
- Largest RAM (384 KB) in the STM32F4 family for complex data handling.
- 176-pin package provides maximum GPIO flexibility.
- 2 MB Flash for extensive application code.
- Advanced LCD-TFT controller for high-resolution displays.
High-End HMI Displays
The 176-pin package and 384 KB RAM support large TFT displays with rich graphics in medical or industrial equipment.
Advanced Robotics
Large memory and high speed enable complex path planning and vision processing.
Multi-Channel Data Loggers
Multiple DMA streams and 384 KB RAM buffer high-speed sensor data.
Professional Audio Mixers
I2S and SAI interfaces handle multiple audio streams with low latency.
Smart Grid Infrastructure
Robust communication interfaces and processing power manage power quality monitoring.
Machine Vision Cameras
High-speed parallel interface and DSP capabilities support image preprocessing.
- Q: What is the RAM size?
- A: It has 384 KB of SRAM.
- Q: What is the core speed?
- A: The core runs at 180 MHz.
- Q: What package is this?
- A: It is a 176-pin LQFP package.
- Q: Does it have an LCD controller?
- A: Yes, it includes an LCD-TFT controller.
