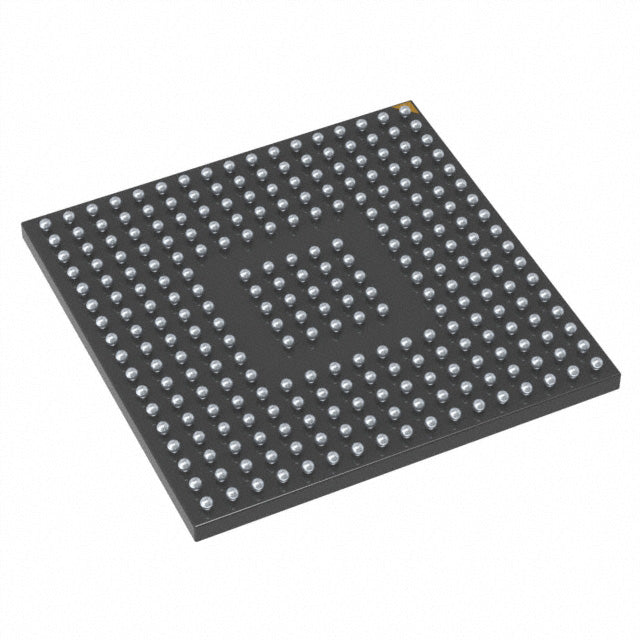

STMicroelectronics STM32F479IGH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $40.31 | $40.31 |
| 15+ | $9.27 | $139.05 |
| 25+ | $9.07 | $226.75 |
| 50+ | $8.57 | $428.50 |
| 100+ | $7.56 | $756.00 |
| N+ | $1.51 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F4 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 180MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SDIO, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 131 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 384K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176+25UFBGA (10x10) |
| Package / Case | 201-UFBGA |
| ROHS |  |
The STM32F479IGH6 from STMicroelectronics is a high-performance ARM Cortex-M4 microcontroller. With 180MHz clock speed, 1MB flash, and 384KB SRAM, it integrates LCD controller, I2S, DMA, and multiple safety features. The 201-UFBGA package is ideal for advanced embedded applications requiring rich connectivity and graphics.
- High performance: 180MHz Cortex-M4 with FPU accelerates math-intensive tasks.
- Large memory: 1MB flash and 384KB SRAM support complex applications.
- Integrated LCD controller: Simplifies graphical display design.
- Comprehensive peripherals: I2S, DMA, PWM, and WDT cover diverse needs.
Human-Machine Interfaces
The integrated LCD controller and 180MHz Cortex-M4 enable rich graphical interfaces on TFT displays.
Audio Processing
I2S peripherals and DMA support high-fidelity audio streaming for professional equipment.
Industrial Automation
Multiple PWM channels and 1MB flash handle complex PLC logic and motion control.
Medical Devices
High-speed ADC and DSP instructions assist in real-time patient monitoring systems.
IoT Gateways
Rich connectivity options (Ethernet, USB) with 384KB RAM manage protocol stacks efficiently.
Smart Grid
Robust power management and brown-out detection ensure reliable operation in energy meters.
- Q: What core does the STM32F479IGH6 use?
- A: It uses an ARM Cortex-M4 with FPU, running at 180MHz.
- Q: How much flash memory is available?
- A: It has 1MB of flash memory and 384KB of SRAM.
- Q: Does it support LCD interfaces?
- A: Yes, it includes an LCD parallel interface and a TFT controller.
- Q: What is the package type?
- A: It comes in a 201-ball UFBGA package.
STM32F479IGH6.pdf
- Q: What core does the STM32F479IGH6 use?
- A: It uses an ARM Cortex-M4 with FPU, running at 180MHz.
- Q: How much flash memory is available?
- A: It has 1MB of flash memory and 384KB of SRAM.
- Q: Does it support LCD interfaces?
- A: Yes, it includes an LCD parallel interface and a TFT controller.
- Q: What is the package type?
- A: It comes in a 201-ball UFBGA package.
