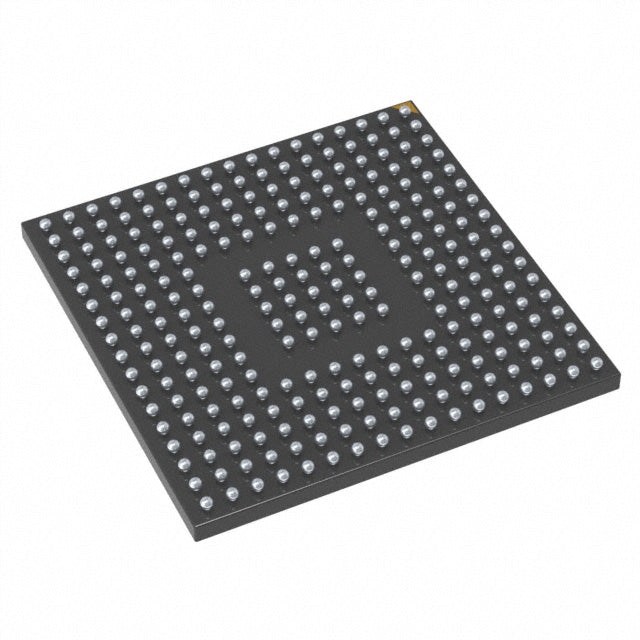

STMicroelectronics STM32F722ICK6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $34.32 | $34.32 |
| 15+ | $7.89 | $118.35 |
| 25+ | $7.72 | $193.00 |
| 50+ | $7.29 | $364.50 |
| 100+ | $6.44 | $644.00 |
| N+ | $1.29 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 140 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176+25UFBGA (10x10) |
| Package / Case | 201-UFBGA |
| ROHS |  |
The STM32F722ICK6 is a high-performance ARM Cortex-M7 microcontroller from STMicroelectronics, operating at up to 216 MHz. It offers 256KB of flash and 256KB of RAM, with a supply voltage range of 1.7V to 3.6V. This MCU includes advanced features such as DMA, I2S, PWM, and brown-out detection, making it ideal for demanding embedded applications. Housed in a compact 201-UFBGA package, it operates reliably from -40°C to 85°C.
- High-Speed Processing: 216 MHz Cortex-M7 core delivers superior computational throughput for real-time tasks.
- Large RAM Capacity: 256KB RAM supports complex data buffering and multitasking without external memory.
- Wide Voltage Range: 1.7V to 3.6V operation enables flexible power design, including single-cell battery use.
- Rich Peripheral Set: I2S, DMA, and PWM interfaces simplify audio, motor, and communication system integration.
Industrial Motor Control
With a 216 MHz Cortex-M7 core and advanced PWM timers, the STM32F722ICK6 handles complex FOC algorithms for precise, low-latency motor control.
High-Performance Audio Processing
The I2S interface and high-speed core enable multi-channel audio codec processing for professional audio equipment.
Embedded Vision Systems
Its high clock speed and DMA capabilities support real-time image preprocessing for smart cameras and machine vision.
IoT Gateways
With 256KB RAM and robust connectivity peripherals, it can manage multiple protocol stacks for edge computing in IoT gateways.
Medical Monitoring Devices
The low-voltage operation (1.7V) and wide temperature range make it suitable for portable, battery-powered medical sensors.
Robotics Controllers
Combining high-speed computation with multiple PWM channels, it provides precise joint control for robotic arms and drones.
- Q: What is the maximum operating frequency of the STM32F722ICK6?
- A: The STM32F722ICK6 operates at up to 216 MHz.
- Q: What is the supply voltage range?
- A: It supports a supply voltage from 1.7V to 3.6V.
- Q: How much flash memory and RAM does it have?
- A: It features 256KB of flash memory and 256KB of RAM.
- Q: What package is available?
- A: It comes in a 201-UFBGA package.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
