STMicroelectronics STM32F733IEK6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $41.66 | $41.66 |
| 15+ | $9.58 | $143.70 |
| 25+ | $9.37 | $234.25 |
| 50+ | $8.85 | $442.50 |
| 100+ | $7.81 | $781.00 |
| N+ | $1.56 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 138 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 256K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |

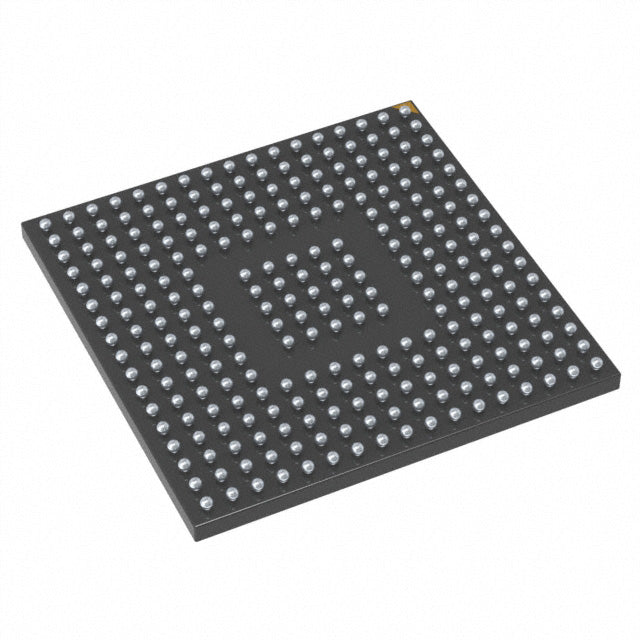

| Supplier Device Package | 176+25UFBGA (10x10) |
| Package / Case | 201-UFBGA |
| ROHS |  |
The STM32F733IEK6 is a high-performance microcontroller from STMicroelectronics based on the ARM Cortex-M7 core. It operates at 216 MHz and provides 512KB of flash memory and 256KB of RAM. The device includes advanced connectivity options, I2S, and multiple PWM channels. With a supply voltage range of 1.7V to 3.6V and a -40°C to 85°C temperature range, it is ideal for demanding embedded applications.
- 216 MHz Cortex-M7 core: Exceptional processing power for compute-intensive tasks.
- 256KB RAM: Large memory for buffering and complex data structures.
- Advanced peripherals (I2S, PWM, DMA): Supports high-speed data streaming and control.
- Low voltage operation (1.7V): Enables battery-powered designs.
High-Performance Audio Processing
The 216 MHz Cortex-M7 with DSP instructions handles real-time audio codecs and effects.
Advanced Motor Control
High-speed PWM and ADC enable precise field-oriented control of servo motors.
Industrial HMI Panels
I2S and LCD interfaces support multimedia-rich user interfaces.
Robotics
Fast processing and 256KB RAM allow complex kinematics and sensor fusion algorithms.
Medical Imaging Devices
High computational power supports real-time image processing for compact devices.
Test and Measurement Equipment
Multiple timers and DMA channels enable high-speed data acquisition.
- Q: What is the core processor of the STM32F733IEK6?
- A: It uses an ARM Cortex-M7 core.
- Q: What is the maximum speed?
- A: The maximum speed is 216 MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V.
- Q: What is the package type?
- A: It comes in a 201-UFBGA package.
STM32F733IEK6.pdf
- Q: What is the core processor of the STM32F733IEK6?
- A: It uses an ARM Cortex-M7 core.
- Q: What is the maximum speed?
- A: The maximum speed is 216 MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V.
- Q: What is the package type?
- A: It comes in a 201-UFBGA package.
