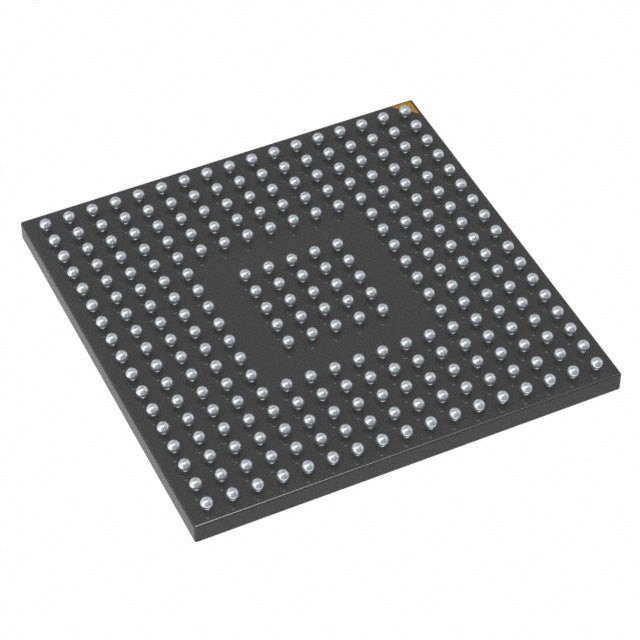

STMicroelectronics STM32F745IGK7
Normaler Preis
$51.14
Normaler Preis
$12.78
Verkaufspreis
$51.14
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $51.14 | $51.14 |
| 15+ | $11.76 | $176.40 |
| 25+ | $11.50 | $287.50 |
| 50+ | $10.86 | $543.00 |
| 100+ | $9.59 | $959.00 |
| N+ | $1.92 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Bulk | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, Temp Sensor, TRNG, WDT |
| Number of I/O | 140 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176+25UFBGA (10x10) |
| Package / Case | 201-UFBGA |
| ROHS |  |
The STM32F745IGK7 is a 32-bit ARM Cortex-M7 MCU from STMicroelectronics. Running at 216MHz, it features 1MB flash and 320KB RAM. With a wide voltage range of 1.7V-3.6V and integrated TRNG, I2S, PWM, and temp sensor, it suits high-performance embedded applications.
- High performance: 216MHz Cortex-M7 core.
- Security: TRNG for cryptographic applications.
- Flexible power: 1.7V-3.6V supports battery operation.
- Rich peripherals: I2S, PWM, temp sensor reduce external components.
High-End Consumer Electronics
216MHz Cortex-M7 with 1MB flash supports rich UI and audio processing.
Industrial IoT Gateways
TRNG and DMA enable secure communication and efficient data handling.
Medical Monitoring Devices
Low voltage operation (1.7V) extends battery life in portable equipment.
Smart Home Hubs
I2S and PWM support audio output and lighting control.
Robotics Controllers
High-speed processing and 320KB RAM handle complex kinematics.
Test and Measurement
Temp sensor and BOR provide environmental monitoring and protection.
- Q: What is the maximum clock speed?
- A: 216MHz.
- Q: Does it have a TRNG?
- A: Yes, hardware random number generator.
- Q: What is the supply voltage range?
- A: 1.7V to 3.6V.
- Q: What package is available?
- A: 201-UFBGA.
Base Product Number ：
STM32F745IGK7
STM32F745IGK7.pdf
- Q: What is the maximum clock speed?
- A: 216MHz.
- Q: Does it have a TRNG?
- A: Yes, hardware random number generator.
- Q: What is the supply voltage range?
- A: 1.7V to 3.6V.
- Q: What package is available?
- A: 201-UFBGA.
×
