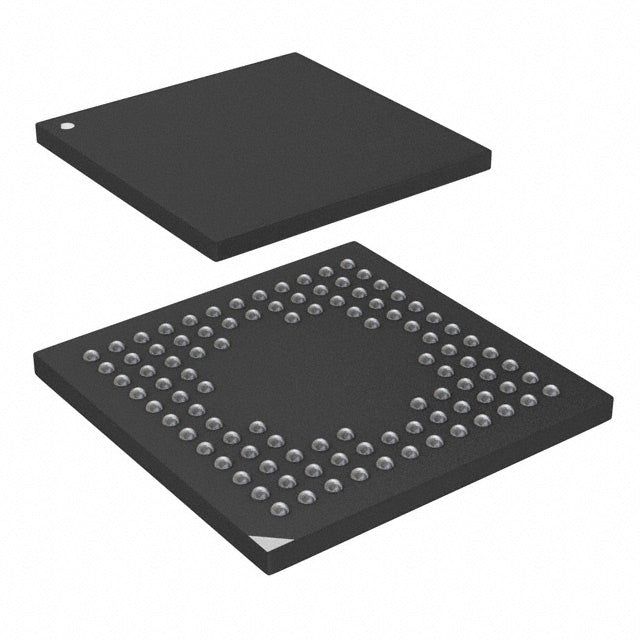

STMicroelectronics STM32F745VGH6
Normaler Preis
$18.34
Normaler Preis
$13.10
Verkaufspreis
$18.34
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.34 | $18.34 |
| 15+ | $12.05 | $180.75 |
| 25+ | $11.79 | $294.75 |
| 50+ | $11.14 | $557.00 |
| 100+ | $9.83 | $983.00 |
| N+ | $1.97 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 82 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 320K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TFBGA (8x8) |
| Package / Case | 100-TFBGA |
| ROHS |  |
The STM32F745VGH6 from STMicroelectronics is a high-performance ARM Cortex-M7 microcontroller. It operates at 216 MHz with 1MB flash and 320KB RAM. The device includes DMA, I2S, PWM, and WDT peripherals. It is packaged in a 100-TFBGA and targets advanced industrial and consumer applications.
- Industry-leading 216MHz Cortex-M7 core for maximum performance.
- 1MB flash and 320KB RAM for complex applications.
- Rich peripheral set including I2S and advanced timers.
- Low voltage operation (1.7V) for energy-efficient designs.
High-End Audio Interfaces
216MHz Cortex-M7 with I2S supports high-resolution audio processing.
Industrial Vision Systems
DMA and high-speed GPIO enable real-time image capture and processing.
Motor Control Drives
Advanced PWM timers provide precise control for servo and vector drives.
Medical Imaging
1MB flash and 320KB RAM handle complex algorithms for ultrasound and OCT.
Smart Grid Protection
Fast interrupt handling and deterministic execution ensure reliable relay protection.
Robotics Controllers
High core speed and rich peripherals support multi-axis kinematics and sensor fusion.
- Q: What is the core speed of the STM32F745VGH6?
- A: The ARM Cortex-M7 core runs at up to 216 MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V.
- Q: How much flash memory is included?
- A: It has 1MB of flash memory.
- Q: What package is this device available in?
- A: It is available in a 100-TFBGA package.
Base Product Number ：
STM32F745VGH6
STM32F745VGH6.pdf
- Q: What is the core speed of the STM32F745VGH6?
- A: The ARM Cortex-M7 core runs at up to 216 MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.7V to 3.6V.
- Q: How much flash memory is included?
- A: It has 1MB of flash memory.
- Q: What package is this device available in?
- A: It is available in a 100-TFBGA package.
×
