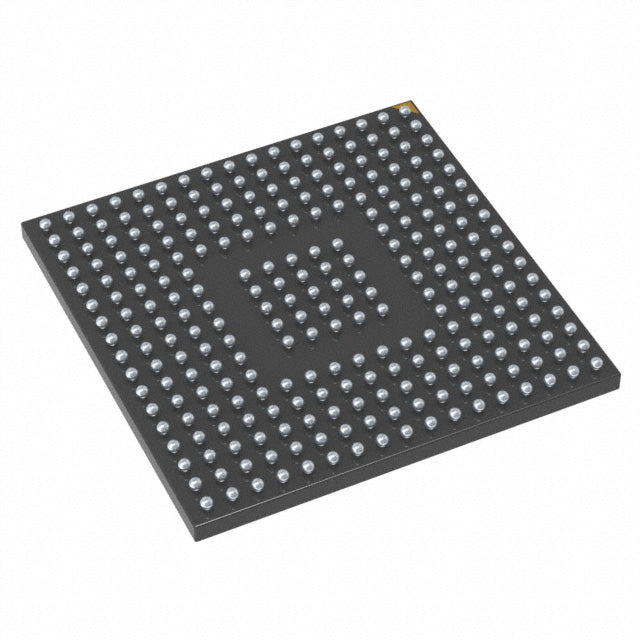

STMicroelectronics STM32F746IGK6
Normaler Preis
$21.97
Normaler Preis
$15.69
Verkaufspreis
$21.97
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.97 | $21.97 |
| 15+ | $14.43 | $216.45 |
| 25+ | $14.12 | $353.00 |
| 50+ | $13.34 | $667.00 |
| 100+ | $11.77 | $1,177.00 |
| N+ | $2.35 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Produktattribute | Eigenschaftswert |
| Hersteller | STMicroelectronics |
| Produktserie | STM32F7 |
| Verpackung | Tray | |
| Kernprozessor | ARM® Cortex®-M7 |
| Kern-Größe | 32-Bit Single-Core |
| Geschwindigkeit | 216MHz |
| Konnektivität | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB OTG |
| Peripherie | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Anzahl der I/O | 140 |
| Programmspeichergröße | 1MB (1M x 8) |
| Programmspeichertyp | FLASH |
| EEPROM-Größe | - |
| RAM-Größe | 320K x 8 |
| Spannung - Versorgung (Vcc/Vdd) | 1.7V ~ 3.6V |
| Datenwandler | A/D 24x12b; D/A 2x12b |
| Oszillatortyp | Intern |
| Betriebstemperatur | -40°C ~ 85°C (TA) |
| Klasse | - |
| AEC-Qualifizierung | - |
| Montageart | Oberflächenmontage |
| Lieferantengerätegehäuse | 176+25UFBGA (10x10) |
| Paket / Gehäuse | 201-UFBGA |
| ROHS |  |
Base Product Number ：
STM32F746IG
STM32F746IGK6.pdf
- Q: What is the maximum operating frequency of the STM32F746IGK6?
- A: The STM32F746IGK6 operates at up to 216 MHz, delivering high-performance computation for demanding applications.
- Q: What is the package type and size?
- A: It comes in a 201-UFBGA package, ideal for compact PCB designs requiring high pin density.
- Q: What is the supply voltage range?
- A: The device supports a supply voltage range of 1.7V to 3.6V, enabling flexible power design.
- Q: Does it include an LCD controller?
- A: Yes, it features an integrated LCD controller, making it suitable for graphical user interface applications.
×
