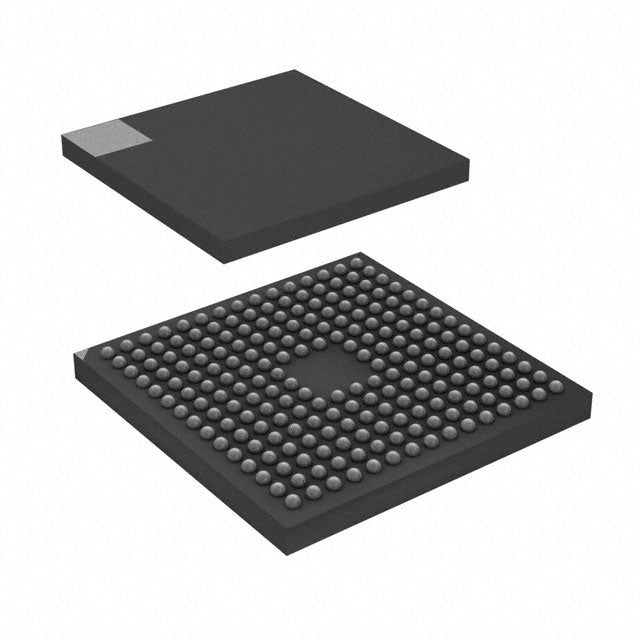

STMicroelectronics STM32F767NIH7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $34.58 | $34.58 |
| 15+ | $22.72 | $340.80 |
| 25+ | $22.23 | $555.75 |
| 50+ | $21.00 | $1,050.00 |
| 100+ | $18.53 | $1,853.00 |
| N+ | $3.71 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 168 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 216-TFBGA (13x13) |
| Package / Case | 216-TFBGA |
| ROHS |  |
The STM32F767NIH7 from STMicroelectronics is a high-performance microcontroller based on the ARM Cortex-M7 core, operating at 216 MHz. It offers 2MB of flash memory and 512KB of RAM, along with an integrated LCD controller, I2S, DMA, and multiple timers. The device operates from 1.7V to 3.6V and is rated for -40°C to 105°C. Packaged in a 216-TFBGA, it is designed for demanding applications requiring high processing power and rich user interfaces.
- High-Speed Processing: 216MHz Cortex-M7 core delivers exceptional performance for real-time applications.
- Large Memory: 2MB flash and 512KB RAM support complex software and data buffering.
- Integrated LCD Controller: Simplifies graphical display design and reduces BOM cost.
- Wide Temperature Range: -40°C to 105°C ensures reliability in harsh environments.
High-End HMI
The 216MHz Cortex-M7 core and LCD controller enable smooth, high-resolution graphical interfaces for industrial control panels.
Audio Processing
I2S interface and high-speed processing support professional audio equipment and multi-channel sound systems.
Motor Control
Advanced PWM timers and DMA provide precise, low-latency control for industrial drives and robotics.
Smart Home Gateways
With 2MB flash and 512KB RAM, it can handle complex protocols and edge computing tasks in smart home hubs.
Medical Equipment
Wide temperature range and robust peripherals make it suitable for patient monitoring and diagnostic devices.
IoT Edge Nodes
High performance and rich connectivity options support real-time data processing in IoT applications.
- Q: What is the maximum clock speed of the STM32F767NIH7?
- A: It operates at up to 216 MHz, providing high-speed processing for advanced applications.
- Q: What is the supply voltage range?
- A: The device supports 1.7V to 3.6V, allowing flexible power supply design.
- Q: Does it include an LCD controller?
- A: Yes, it features an integrated LCD controller for graphical display support.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 105°C, suitable for industrial and automotive environments.
STM32F767NIH7.pdf
