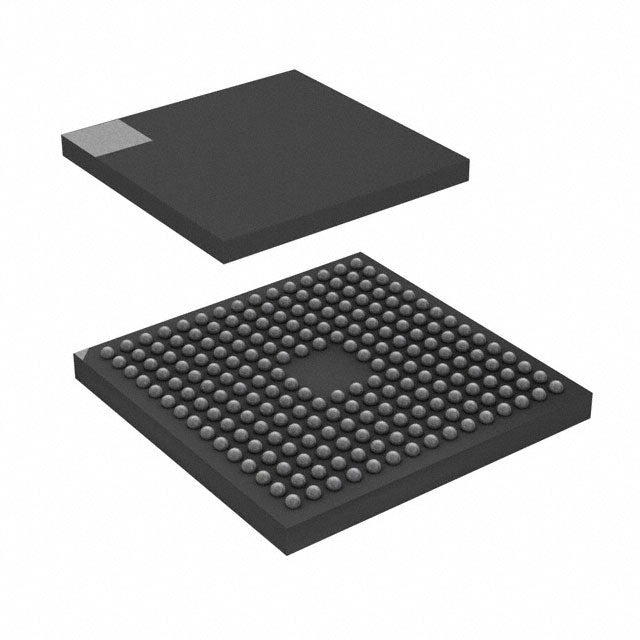

STMicroelectronics STM32F779NIH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $34.02 | $34.02 |
| 15+ | $22.36 | $335.40 |
| 25+ | $21.87 | $546.75 |
| 50+ | $20.66 | $1,033.00 |
| 100+ | $18.23 | $1,823.00 |
| N+ | $3.65 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32F7 |
| Packaging | Tray | |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 216MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 159 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Data Converters | A/D 24x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 216-TFBGA (13x13) |
| Package / Case | 216-TFBGA |
| ROHS |  |
The STM32F779NIH6 is a high-performance microcontroller from STMicroelectronics, built on the ARM Cortex-M7 core. It operates at up to 216 MHz, offering exceptional computational throughput for advanced embedded applications. With 2MB of flash memory and 512KB of RAM, it provides ample resources for complex firmware. The device includes a rich set of peripherals such as LCD controller, I2S, DMA, and multiple timers, all within a compact 216-TFBGA package. Its wide supply voltage range and industrial temperature rating make it a versatile choice for demanding designs.
- High-Speed Processing: 216MHz Cortex-M7 core delivers superior performance for real-time control and signal processing.
- Large Memory Capacity: 2MB flash and 512KB RAM support complex applications and data buffering.
- Integrated LCD Controller: Simplifies graphical display design, reducing external component count.
- Comprehensive Peripheral Set: Includes I2S, DMA, PWM, and watchdog timers for versatile system integration.
Industrial HMI Panels
With a 216MHz Cortex-M7 core and integrated LCD controller, the STM32F779NIH6 can drive high-resolution displays with smooth graphics, ideal for industrial human-machine interfaces.
Audio Processing Systems
The I2S interface and high-speed processing enable multi-channel audio codec connectivity, supporting professional audio equipment and voice-controlled devices.
Motor Control Drives
Advanced PWM timers and DMA controllers allow precise, low-latency control of AC and DC motors, improving efficiency in factory automation.
Smart Meters
With 2MB flash and 512KB RAM, it can handle complex metering algorithms and data logging, while the low-power modes extend battery life in smart grid applications.
Medical Monitoring Devices
The wide voltage range and robust feature set support portable patient monitors, providing reliable data acquisition and display capabilities.
IoT Gateways
Combining high-speed processing with rich connectivity peripherals, it serves as a powerful hub for aggregating sensor data and managing edge computing tasks.
- Q: What is the maximum operating frequency of the STM32F779NIH6?
- A: The STM32F779NIH6 operates at up to 216 MHz, delivering high-performance computation for demanding applications.
- Q: What is the supply voltage range?
- A: It supports a supply voltage range of 1.7V to 3.6V, enabling flexible power design.
- Q: Does it include an LCD controller?
- A: Yes, it features an integrated LCD controller, making it suitable for graphical user interfaces.
- Q: What is the operating temperature range?
- A: The device operates from -40°C to 85°C, suitable for industrial environments.
