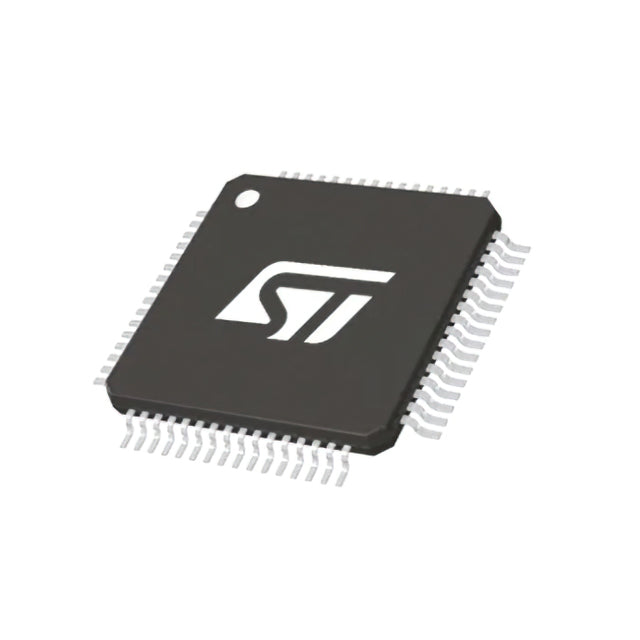

STMicroelectronics STM32H523RCT7TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.89 | $10.89 |
| 15+ | $2.50 | $37.50 |
| 25+ | $2.45 | $61.25 |
| 50+ | $2.31 | $115.50 |
| 100+ | $2.04 | $204.00 |
| N+ | $0.41 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H5 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M33F |
| Core Size | 32-Bit |
| Speed | 250MHz |
| Connectivity | CANbus, FIFO, I2C, IrDA, LINbus, MMC/SD/SDIO, SMBus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Number of I/O | 49 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 272K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 16x12b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The STM32H523RCT7TR is a high-performance ARM Cortex-M33F microcontroller from STMicroelectronics, running at 250MHz. It features 256KB flash and 272KB SRAM, operating from 1.71V to 3.6V. Packaged in a 64-LQFP, it includes I2S, DMA, PWM, POR, and WDT, making it suitable for demanding audio, industrial, and IoT applications.
- Exceptional processing power: 250MHz Cortex-M33F with FPU handles complex algorithms and DSP tasks efficiently.
- Large SRAM: 272KB enables extensive data buffering and reduces external memory needs.
- Advanced peripherals: I2S and PWM support high-quality audio and precise motor control.
- Scalable performance: Ideal for applications requiring both high speed and low latency.
High-End Audio Processors
The 250MHz Cortex-M33F with I2S support enables real-time audio effects processing and high-fidelity playback.
Industrial Vision Systems
With 272KB SRAM, it can buffer image lines for barcode readers and simple machine vision cameras.
Robotics Controllers
The high clock speed and PWM channels allow precise multi-axis servo control in hobby and educational robots.
Smart Grid Monitors
Its fast ADC sampling and DSP capabilities support power quality analysis in smart meters.
Medical Ultrasound Front-Ends
The M33F core with FPU accelerates beamforming algorithms for portable ultrasound devices.
Automotive HMI Clusters
It can drive graphical displays and process touch inputs with its high-speed processing and rich peripherals.
- Q: What is the core speed of this MCU?
- A: It runs at up to 250MHz using an ARM Cortex-M33F core.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: How much flash and RAM are included?
- A: It has 256KB flash and 272KB SRAM.
- Q: What package is it available in?
- A: It comes in a 64-LQFP package.
- Q: Does it support advanced audio interfaces?
- A: Yes, it includes I2S, DMA, PWM, POR, and WDT features.
