STMicroelectronics STM32H563IIK3Q
Normaler Preis
$28.47
Normaler Preis
$7.12
Verkaufspreis
$28.47
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $28.47 | $28.47 |
| 15+ | $6.55 | $98.25 |
| 25+ | $6.41 | $160.25 |
| 50+ | $6.05 | $302.50 |
| 100+ | $5.34 | $534.00 |
| N+ | $1.07 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H5 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 250MHz |
| Connectivity | CANbus, Ethernet, FIFO, I2C, IrDA, LINbus, SCI, SDIO, SMBus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, PDR, POR, PWM, SHA, TRNG, Voltage Detect, WDT |
| Number of I/O | 139 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 640K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 20x12b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176+25UFBGA (10x10) |
| Package / Case | 201-UFBGA |
| ROHS |  |

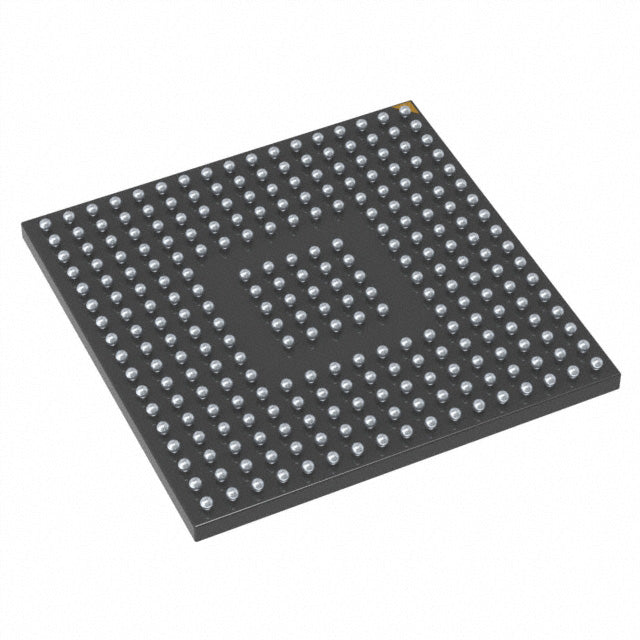

The STM32H563IIK3Q is a high-performance ARM Cortex-M33 MCU from STMicroelectronics, running at 250MHz with 2MB flash and 640KB RAM. It integrates advanced security (SHA, TRNG), multiple communication interfaces, and operates from 1.71V to 3.6V. The 201-UFBGA package is designed for compact, high-reliability systems.
- 250MHz Cortex-M33 – highest performance in STM32H5 series.
- 2MB flash / 640KB RAM – ample for complex applications.
- Hardware security (SHA, TRNG) – protects firmware and data.
- Wide temp range (-40 to 125°C) – suitable for harsh environments.
Industrial IoT Gateways
250MHz Cortex-M33 with SHA/TRNG enables secure cloud connectivity.
Smart Grid Meters
High-speed ADC and DMA handle real-time power monitoring.
Medical Wearables
Low voltage (1.71V) and 125°C rating suit body-worn sensors.
Robotics Controllers
2MB flash stores complex algorithms; PWM drives servos.
Automotive Telematics
Wide temp range and CAN-FD support vehicle data logging.
Edge AI Accelerators
Cortex-M33 with DSP instructions processes ML inference.
- Q: What is the max core speed?
- A: 250MHz ARM Cortex-M33.
- Q: How much flash and RAM?
- A: 2MB flash and 640KB RAM.
- Q: What security features?
- A: SHA, TRNG, and secure boot.
- Q: Operating temperature?
- A: -40°C to 125°C.
Base Product Number ：
STM32H563II
STM32H563IIK3Q.pdf
- Q: What is the max core speed?
- A: 250MHz ARM Cortex-M33.
- Q: How much flash and RAM?
- A: 2MB flash and 640KB RAM.
- Q: What security features?
- A: SHA, TRNG, and secure boot.
- Q: Operating temperature?
- A: -40°C to 125°C.
×
