STMicroelectronics STM32H563RIV6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.51 | $18.51 |
| 15+ | $4.26 | $63.90 |
| 25+ | $4.17 | $104.25 |
| 50+ | $3.94 | $197.00 |
| 100+ | $3.47 | $347.00 |
| N+ | $0.69 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H5 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 250MHz |
| Connectivity | CANbus, Ethernet, FIFO, I2C, IrDA, LINbus, SCI, SDIO, SMBus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, PDR, POR, PWM, SHA, TRNG, Voltage Detect, WDT |
| Number of I/O | 53 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 640K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 16x12b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 68-VFQFPN (8x8) |
| Package / Case | 68-VFQFN Exposed Pad |
| ROHS |  |
The STM32H563RIV6 from STMicroelectronics is a high-performance microcontroller built on the ARM Cortex-M33 core, running at up to 250MHz. It offers 2MB of flash memory and 640KB of RAM, making it ideal for complex embedded applications. With a wide supply voltage range of 1.71V to 3.6V and integrated security features like SHA and TRNG, this MCU delivers both flexibility and protection for advanced designs.
- High-Speed Processing: 250MHz Cortex-M33 core delivers rapid execution for real-time tasks.
- Large Memory Capacity: 2MB flash and 640KB RAM support complex firmware and data buffering.
- Advanced Security: On-chip SHA and TRNG enable secure communication and data integrity.
- Wide Voltage Range: Operates from 1.71V to 3.6V, accommodating various power supply designs.

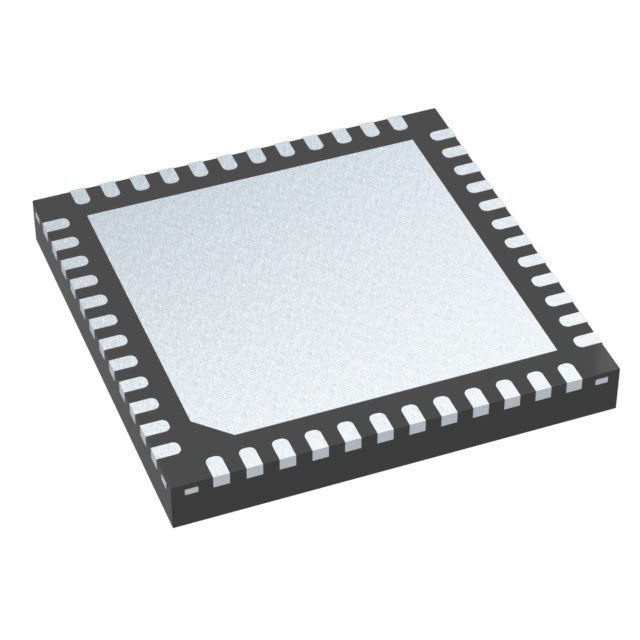

- Compact Package: 68-VFQFN package saves PCB space while providing good thermal performance.
Industrial Control Systems
With a 250MHz Cortex-M33 core and 2MB flash, it handles complex real-time control loops and predictive maintenance algorithms with ease.
Secure IoT Gateways
Integrated SHA and TRNG hardware acceleration enables robust encryption and secure key generation for cloud-connected devices.
Smart Energy Meters
Low power modes and wide voltage range (1.71V-3.6V) support battery-backed metering with high-resolution data logging.
Medical Monitoring Devices
The high-speed ADC and DMA allow continuous patient data acquisition while maintaining low latency for alarm triggers.
Robotics and Drone Controllers
Multiple PWM channels and fast interrupt handling support precise motor control and sensor fusion at 250MHz.
Automotive Body Electronics
Operating temperature range of -40°C to 85°C and robust brown-out detection make it suitable for in-vehicle control modules.
- Q: What is the maximum operating frequency of the STM32H563RIV6?
- A: The STM32H563RIV6 operates at up to 250 MHz.
- Q: What is the supply voltage range?
- A: It supports a supply voltage from 1.71V to 3.6V.
- Q: How much flash memory and RAM does it have?
- A: It features 2MB of flash memory and 640KB of RAM.
- Q: What security features are integrated?
- A: It includes hardware cryptographic acceleration (SHA, TRNG) and secure boot support.
- Q: What package is available?
- A: It comes in a 68-VFQFN exposed pad package.
