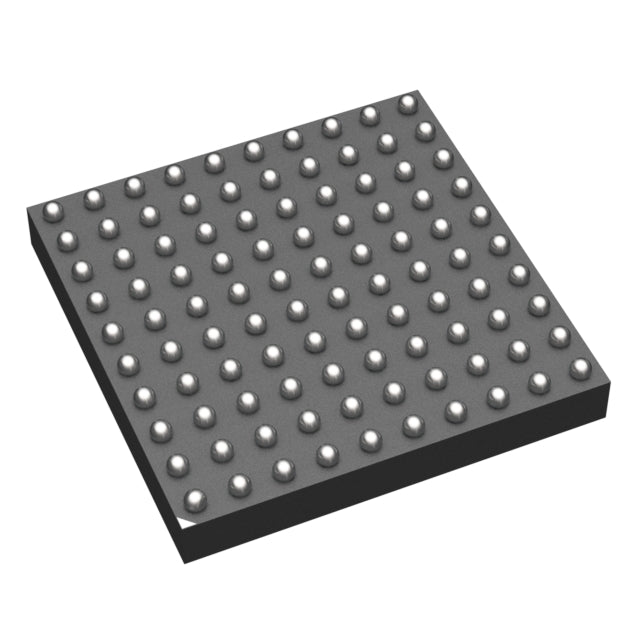

STMicroelectronics STM32H725VGH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $29.97 | $29.97 |
| 15+ | $6.89 | $103.35 |
| 25+ | $6.74 | $168.50 |
| 50+ | $6.37 | $318.50 |
| 100+ | $5.62 | $562.00 |
| N+ | $1.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Bulk | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 550MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 74 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 564K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 43x12/16b; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-TFBGA (8x8) |
| Package / Case | 100-TFBGA |
| ROHS |  |
The STMicroelectronics STM32H725VGH6 is a high-performance 32-bit microcontroller based on the ARM Cortex-M7 core. It operates at up to 550MHz with 1MB flash and 564KB RAM. The device supports a supply voltage from 1.62V to 3.6V. It includes advanced features like LCD controller, I2S, DMA, and brown-out detection. The 100-TFBGA package is designed for compact, high-density applications.
- 550MHz Cortex-M7 delivers exceptional processing power.
- 1MB flash and 564KB RAM support complex applications.
- Integrated LCD controller simplifies display design.
- Rich peripheral set (I2S, PWM, DMA) for versatile use.
High-End Industrial HMI
The 550MHz Cortex-M7 and LCD controller enable rich graphical user interfaces.
Audio Processing
I2S and DMA support high-fidelity audio streaming and effects.
Machine Vision
1MB flash and 564KB RAM handle image processing algorithms.
Motor Control
Advanced PWM timers provide precise control for multi-axis servo systems.
IoT Edge Computing
High-speed processing enables local AI inference and data analytics.
Medical Imaging
Large memory and fast core support ultrasound and OCT signal processing.
- Q: What is the maximum clock speed of the STM32H725VGH6?
- A: It runs at up to 550MHz.
- Q: What is the flash memory size?
- A: It has 1MB of flash memory.
- Q: What is the RAM size?
- A: It includes 564KB of RAM.
- Q: Does it support LCD?
- A: Yes, it has an LCD controller.
