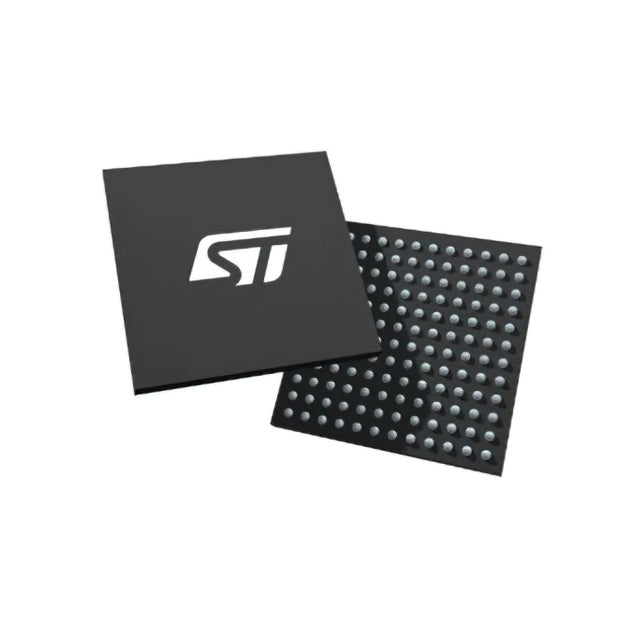

STMicroelectronics STM32H730ZBI6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $25.40 | $25.40 |
| 15+ | $5.84 | $87.60 |
| 25+ | $5.72 | $143.00 |
| 50+ | $5.40 | $270.00 |
| 100+ | $4.76 | $476.00 |
| N+ | $0.95 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Speed | 550MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 144 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 564K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 17x12b, 34x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-UFBGA (7x7) |
| Package / Case | 144-UFBGA |
| ROHS |  |
The STM32H730ZBI6TR is a high-performance ARM Cortex-M7 microcontroller from STMicroelectronics, running at 550MHz. It features 128KB flash and 564KB RAM in a 144-UFBGA package. With a 1.62V-3.6V supply range, it integrates DMA, I2S, LCD, POR, PWM, and WDT for advanced embedded applications.
- 550MHz Cortex-M7: Industry-leading compute for DSP and AI workloads.
- 564KB RAM: Large buffer for complex real-time data processing.
- Integrated LCD controller: Reduces BOM cost for display applications.
- 1.62V low-voltage operation: Enables energy-efficient battery designs.
High-End Audio Processors
The 550MHz Cortex-M7 with I2S and DMA enables real-time multi-channel audio effects processing.
Industrial HMI Panels
Integrated LCD controller and 564KB RAM support rich graphical interfaces without external frame buffers.
Machine Vision Cameras
High-speed GPIO and DMA handle parallel image sensor data at 550MHz for edge detection algorithms.
Robotics Controllers
Multiple PWM channels and fast interrupt response allow precise servo and stepper motor coordination.
Smart Grid Protection Relays
Brown-out detection and WDT ensure fail-safe operation in substation environments with power fluctuations.
Portable Test Equipment
Low-voltage operation (1.62V) extends battery life in handheld oscilloscopes and logic analyzers.
- Q: What is the maximum clock speed?
- A: The ARM Cortex-M7 core runs at up to 550MHz.
- Q: What is the RAM size?
- A: It has 564KB of SRAM.
- Q: What is the package type?
- A: It is available in a 144-UFBGA package.
- Q: Does it support LCD?
- A: Yes, it includes an LCD interface controller.
- Q: What voltage does it need?
- A: It operates from 1.62V to 3.6V.
