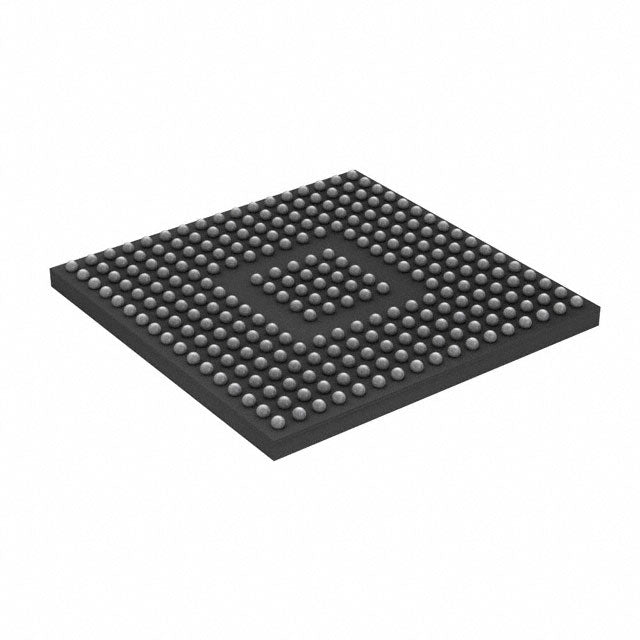

STMicroelectronics STM32H745XIH6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $56.20 | $56.20 |
| 15+ | $12.93 | $193.95 |
| 25+ | $12.65 | $316.25 |
| 50+ | $11.94 | $597.00 |
| 100+ | $10.54 | $1,054.00 |
| N+ | $2.11 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M4, Cortex®-M7 |
| Core Size | 32-Bit Dual-Core |
| Speed | 240MHz, 480MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 168 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 36x16b; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 240+25-TFBGA (14x14) |
| Package / Case | 265-TFBGA |
| ROHS |  |
The STMicroelectronics STM32H745XIH6TR is a dual-core 32-bit MCU featuring an ARM Cortex-M7 at 480MHz and a Cortex-M4 at 240MHz. It offers 2MB of flash and 1MB of RAM, providing exceptional computational resources. The 265-pin TFBGA package enables high-density designs. With a supply range of 1.62V to 3.6V and a temperature range of -40°C to 85°C, it targets high-performance embedded applications. Integrated LCD, I2S, DMA, PWM, and WDT peripherals make it a comprehensive solution.
- Dual-core (M7 480MHz + M4 240MHz): Unmatched processing power for complex tasks.
- 1MB RAM: Large buffer for high-speed data acquisition and graphics.
- Integrated LCD and I2S: Direct support for multimedia interfaces.
- Low voltage operation (1.62V): Suitable for power-sensitive portable devices.
High-End Audio Processors
The 480MHz M7 core and I2S interface enable real-time audio DSP for professional mixing consoles.
Industrial Vision Systems
The dual-core architecture handles image processing on M7 and communication on M4, achieving high throughput.
Smart Home Hubs
LCD controller drives touchscreens, while the M4 core manages Zigbee/Wi-Fi stacks concurrently.
Medical Ultrasound Devices
1MB RAM buffers high-resolution sensor data, and the 480MHz core performs beamforming algorithms.
Robotics Motion Controllers
Multiple PWM channels and DMA support complex multi-axis trajectory planning.
Edge AI Accelerators
The M7 core runs neural network inference, while the M4 handles sensor fusion and I/O.
- Q: What are the core specifications?
- A: It has a dual-core ARM Cortex-M7 at 480MHz and Cortex-M4 at 240MHz.
- Q: How much flash and RAM is available?
- A: It provides 2MB flash and 1MB RAM.
- Q: What is the supply voltage range?
- A: It operates from 1.62V to 3.6V.
- Q: What package is used?
- A: It comes in a 265-ball TFBGA package.
- Q: What display and audio interfaces are included?
- A: It includes LCD controller and I2S audio interfaces.
