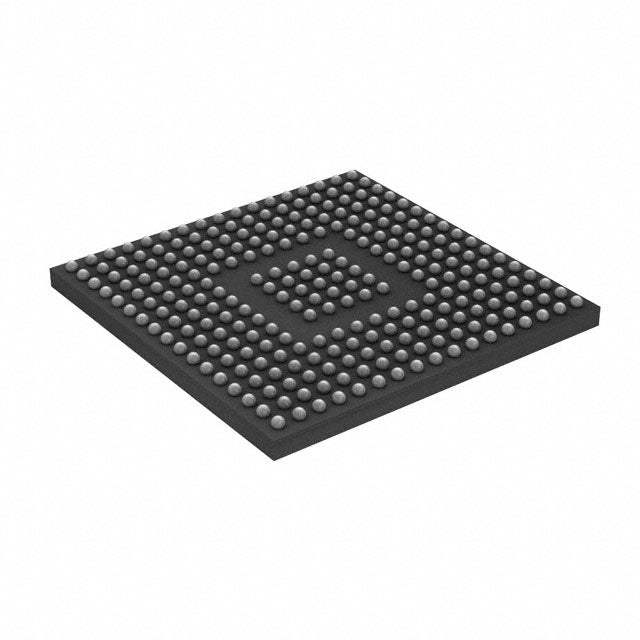

STMicroelectronics STM32H747XGH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $54.26 | $54.26 |
| 15+ | $12.48 | $187.20 |
| 25+ | $12.20 | $305.00 |
| 50+ | $11.53 | $576.50 |
| 100+ | $10.17 | $1,017.00 |
| N+ | $2.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M4/M7 |
| Core Size | 32-Bit Dual-Core |
| Speed | 240MHz, 480MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 168 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 36x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 240+25-TFBGA (14x14) |
| Package / Case | 265-TFBGA |
| ROHS |  |
The STMicroelectronics STM32H747XGH6 is a dual-core 32-bit MCU with ARM Cortex-M7 at 480MHz and Cortex-M4 at 240MHz. It provides 1MB flash and 1MB RAM in a 265-TFBGA package. With LCD, I2S, and DMA, it targets high-performance embedded applications.
- Dual-core performance: M7 for heavy compute, M4 for control, enabling parallel tasks.
- High-speed operation: Up to 480MHz for demanding applications.
- Large memory: 1MB RAM and 1MB flash support complex software stacks.
- Integrated LCD controller: Reduces external display driver cost.
High-End Consumer Electronics
Dual-core (M7 at 480MHz + M4 at 240MHz) enables simultaneous UI rendering and audio processing.
Industrial HMI
LCD controller and rich graphics acceleration support advanced touchscreen interfaces.
Machine Vision
High-speed M7 core and DMA handle real-time image preprocessing and feature extraction.
Audio Processing
I2S and dual-core architecture allow complex audio effects and multi-channel mixing.
IoT Edge Devices
1MB RAM and 1MB flash support AI inference and secure cloud connectivity.
Medical Imaging
High computational power enables ultrasound and OCT signal processing in portable devices.
- Q: What are the core processors?
- A: It features a dual-core ARM Cortex-M7 (480MHz) and Cortex-M4 (240MHz).
- Q: How much RAM is available?
- A: It has 1MB of RAM.
- Q: What is the package type?
- A: It comes in a 265-TFBGA package.
- Q: Does it support LCD?
- A: Yes, it has an integrated LCD controller.
