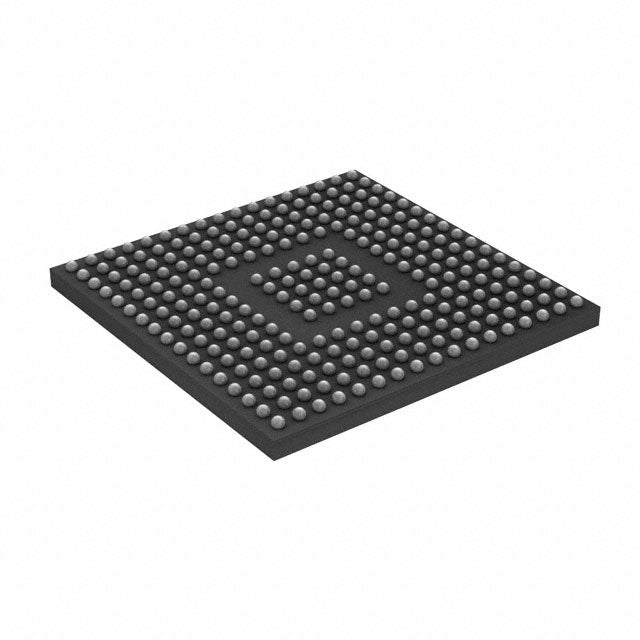

STMicroelectronics STM32H750XBH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.69 | $18.69 |
| 15+ | $12.28 | $184.20 |
| 25+ | $12.02 | $300.50 |
| 50+ | $11.35 | $567.50 |
| 100+ | $10.01 | $1,001.00 |
| N+ | $2.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32H7 |
| Packaging | Tray | Tray |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 480MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 168 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1M x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
| Data Converters | A/D 36x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 240+25-TFBGA (14x14) |
| Package / Case | 265-TFBGA |
| ROHS |  |
The STM32H750XBH6 is a high-performance 32-bit MCU from STMicroelectronics, based on the ARM Cortex-M7 core. It operates at up to 480MHz with 128KB flash and 1MB RAM. The device includes advanced peripherals such as LCD, I2S, DMA, PWM, and WDT. It is designed for demanding applications requiring intensive computation and rich connectivity.
- 480MHz Cortex-M7: Exceptional processing power for complex algorithms.
- 1MB RAM: Enables large data buffers and complex applications.
- Integrated LCD controller: Simplifies display interface design.
- Advanced peripherals (DMA, I2S): Supports high-speed data streaming.
High-End Industrial HMI
480MHz Cortex-M7 with LCD controller and 1MB RAM enables rich graphical user interfaces.
Digital Signal Processing
High-speed core and DSP instructions handle real-time audio and vibration analysis.
Machine Vision
Fast processing and DMA support camera interface and image preprocessing.
Motor Control
Advanced PWM timers and high-speed ADC enable precise field-oriented control.
Edge AI
1MB RAM allows running small neural networks for predictive maintenance.
Telecommunications
High throughput and I2S support VoIP and audio processing equipment.
- Q: What is the maximum clock speed?
- A: 480MHz.
- Q: How much RAM is available?
- A: 1MB.
- Q: What is the package?
- A: 265-TFBGA.
- Q: Does it support LCD?
- A: Yes, LCD controller is integrated.
