STMicroelectronics STM32L072V8I6
Normaler Preis
$10.42
Normaler Preis
$2.61
Verkaufspreis
$10.42
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.42 | $10.42 |
| 15+ | $2.40 | $36.00 |
| 25+ | $2.35 | $58.75 |
| 50+ | $2.22 | $111.00 |
| 100+ | $1.96 | $196.00 |
| N+ | $0.39 | Price Inquiry |
Versand wird beim Checkout berechnet
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L0 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 84 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 3K x 8 |
| RAM Size | 20K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-UFBGA (7x7) |
| Package / Case | 100-UFBGA |
| ROHS |  |

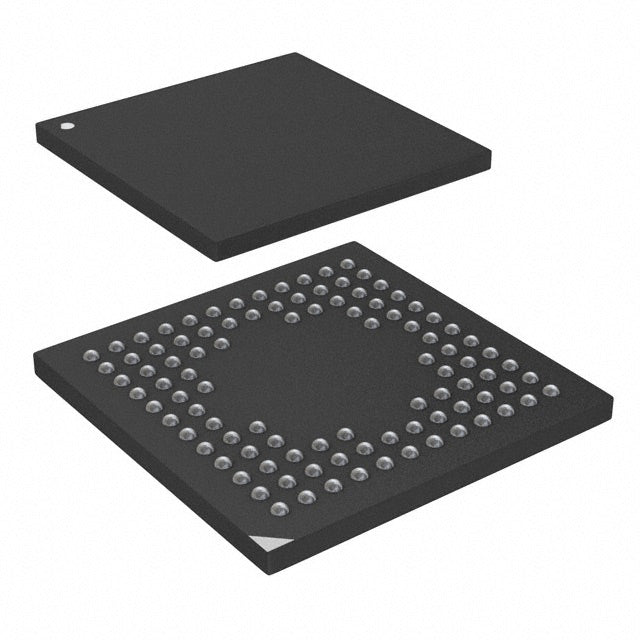

The STM32L072V8I6 is an ultra-low-power ARM Cortex-M0+ MCU from STMicroelectronics with 64KB flash and 20KB RAM in a 100-UFBGA package. It operates at 32MHz with 1.65V-3.6V supply, integrating DMA, brown-out detection, POR, PWM, and WDT.
- Ultra-low-power Cortex-M0+ core extends battery life in portable devices.
- Wide voltage range (1.65V-3.6V) supports single-cell battery operation.
- 100-UFBGA package saves board space for compact designs.
- Integrated DMA and PWM reduce CPU workload.
IoT Edge Nodes
The Cortex-M0+ core with 32MHz speed and 64KB flash handles sensor fusion and BLE stacks efficiently.
Wearable Health Monitors
Low supply voltage (1.65V) and 20KB RAM support continuous biosignal processing.
Smart Home Controllers
100-UFBGA package allows compact PCB design for wall-mounted panels.
Industrial Sensor Hubs
DMA offloads ADC data transfer, enabling real-time monitoring in noisy environments.
Portable Instrumentation
1.65V-3.6V range enables direct battery operation with minimal power loss.
Metering and Monitoring
64KB flash supports calibration data and communication protocols for smart meters.
- Q: What core does this MCU use?
- A: It uses the ARM Cortex-M0+ core at 32MHz.
- Q: What is the RAM size?
- A: It has 20KB of SRAM.
- Q: What is the package type?
- A: It comes in a 100-UFBGA package.
- Q: Does it support DMA?
- A: Yes, it includes DMA, brown-out detection, POR, PWM, and WDT.
Base Product Number ：
STM32L072V8I6
STM32L072V8I6.pdf
