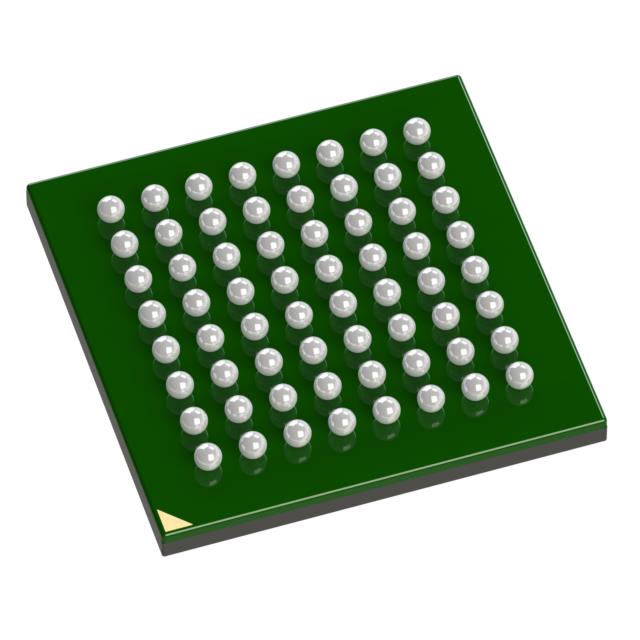

STMicroelectronics STM32L083RZH3
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.38 | $13.38 |
| 15+ | $3.07 | $46.05 |
| 25+ | $3.01 | $75.25 |
| 50+ | $2.84 | $142.00 |
| 100+ | $2.51 | $251.00 |
| N+ | $0.50 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L0 |
| Packaging | Bulk | NULL |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 51 |
| Program Memory Size | 192KB (192K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 6K x 8 |
| RAM Size | 20K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.65V ~ 3.6V |
| Data Converters | A/D 16x12b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-TFBGA (5x5) |
| Package / Case | 64-TFBGA |
| ROHS |  |
The STMicroelectronics STM32L083RZH3 is an ultra-low-power 32-bit MCU featuring an ARM Cortex-M0+ core at 32MHz. It offers 192KB flash and 20KB RAM, with an integrated LCD driver, DMA, and I2S. Operating from 1.65V to 3.6V and rated for -40°C to 125°C, this 64-TFBGA device is engineered for energy-efficient and high-temperature applications.
- Integrated LCD driver: Eliminates the need for external display controllers, saving board space and cost.
- Extended temperature range: -40°C to 125°C suits automotive and industrial environments.
- Large flash memory: 192KB provides ample space for complex firmware and data logging.
- Ultra-low voltage operation: Down to 1.65V enables direct battery operation without boost converters.
Smart Meters
The integrated LCD controller and low-power modes make it perfect for utility meters that need to display usage data.
Medical Monitoring Devices
With a wide temperature range up to 125°C and DMA, it can handle continuous patient vitals monitoring in demanding conditions.
Industrial Process Controllers
The 192KB flash allows storing complex control algorithms, while PWM and WDT ensure reliable operation.
Wearable Fitness Trackers
Its 1.65V minimum voltage and small TFBGA package enable slim, battery-efficient wearable designs.
Building Automation
I2S support enables audio alerts in HVAC controllers, while the LCD can show temperature and status.
Portable Instrumentation
The combination of LCD, DMA, and low power makes it ideal for handheld multimeters or signal analyzers.
- Q: What is the maximum clock speed?
- A: The STM32L083RZH3 runs at up to 32MHz.
- Q: Does it have an LCD controller?
- A: Yes, it includes an integrated LCD driver for direct segment display control.
- Q: What is the supply voltage range?
- A: It operates from 1.65V to 3.6V, supporting low-voltage applications.
- Q: What package is this device available in?
- A: It comes in a 64-TFBGA package, suitable for compact designs.
