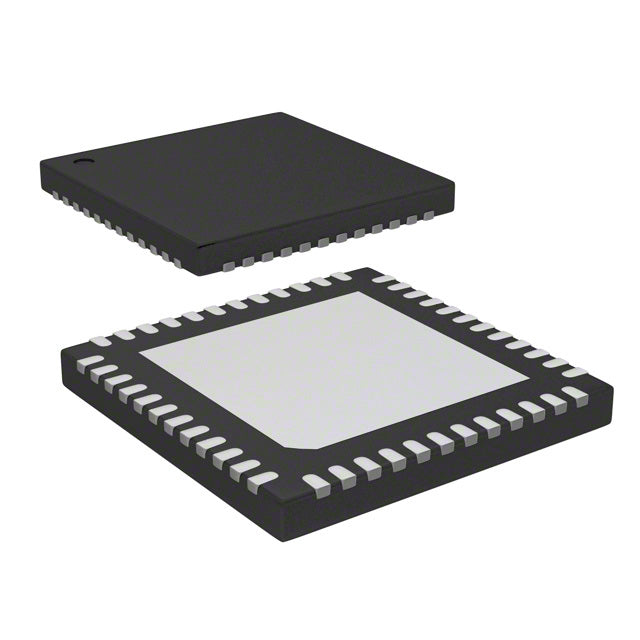

STMicroelectronics STM32L100C6U6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.68 | $13.68 |
| 15+ | $3.15 | $47.25 |
| 25+ | $3.08 | $77.00 |
| 50+ | $2.91 | $145.50 |
| 100+ | $2.57 | $257.00 |
| N+ | $0.51 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L1 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 32MHz |
| Connectivity | I2C, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
| Number of I/O | 37 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 16x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 48-UFQFN Exposed Pad |
| ROHS |  |
The STMicroelectronics STM32L100C6U6TR is a low-power 32-bit microcontroller based on the ARM Cortex-M3 core. It runs at 32MHz and provides 32KB of flash memory and 4KB of SRAM. The device operates from 1.8V to 3.6V and is housed in a compact 48-UFQFN package. It includes features like brown-out detection, DMA, LCD, and PWM, making it ideal for energy-efficient embedded applications.
- Ultra-Low Power: Optimized for battery-powered applications with 1.8V operation.
- Compact Size: 48-UFQFN package saves PCB space.
- Integrated LCD Driver: Directly drives small displays without extra components.
- Reliable Operation: Brown-out detect and POR ensure stable performance.
Battery-Powered Medical Devices
The low-power Cortex-M3 core and 1.8V operation enable long battery life in glucose meters and pulse oximeters.
Portable Consumer Electronics
Its small 48-UFQFN package and integrated LCD support compact designs for remote controls and digital thermometers.
Industrial Sensor Nodes
With brown-out detection and DMA, it reliably processes sensor data in factory automation.
Smart Home Devices
The PWM and WDT features support simple motor and heater control in smart plugs and thermostats.
Wearable Fitness Trackers
Low power consumption and small footprint make it suitable for step counters and heart rate monitors.
Simple IoT Endpoints
Its rich peripheral set allows easy interfacing with sensors and wireless modules.
- Q: What core is used in the STM32L100C6U6TR?
- A: It uses the ARM Cortex-M3 core.
- Q: What is the maximum frequency?
- A: It operates at 32MHz.
- Q: How much flash and RAM does it have?
- A: It has 32KB flash and 4KB RAM.
- Q: What is the package?
- A: It is available in a 48-UFQFN exposed pad package.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 3.6V.
