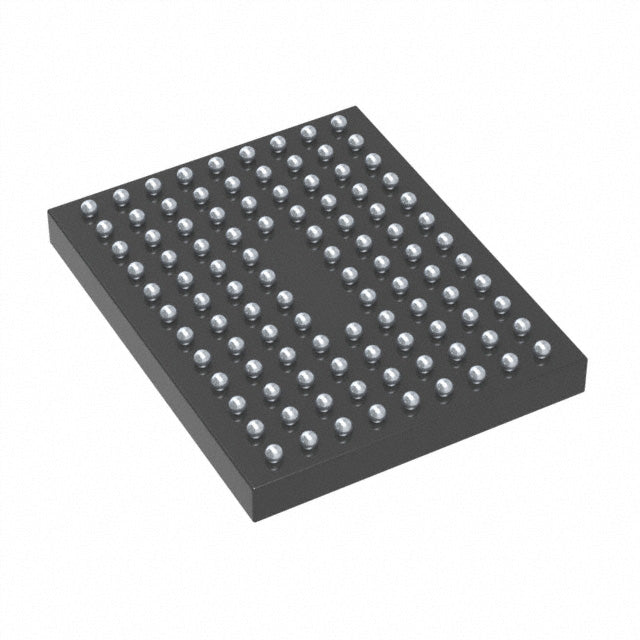

STMicroelectronics STM32L152VEY6TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $23.85 | $23.85 |
| 15+ | $5.48 | $82.20 |
| 25+ | $5.36 | $134.00 |
| 50+ | $5.07 | $253.50 |
| 100+ | $4.47 | $447.00 |
| N+ | $0.89 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L1 |
| Packaging | Tape & Reel (TR) | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, Cap Sense, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 83 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 16K x 8 |
| RAM Size | 80K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 25x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 104-WLCSP (5.09x4.1) |
| Package / Case | 104-UFBGA, WLCSP |
| ROHS |  |
The STM32L152VEY6TR from STMicroelectronics is a high-density, low-power ARM Cortex-M3 MCU. It offers 512KB flash and 80KB SRAM in an ultra-compact 104-UFBGA package. With an integrated LCD controller, Cap Sense, and I2S, it is designed for advanced portable and IoT applications requiring minimal board space.
- Ultra-compact WLCSP package: Enables miniaturized product designs.
- High memory density: 512KB flash and 80KB SRAM for complex applications.
- Low-power operation: 1.8V supply and low-power modes for battery devices.
- Integrated LCD and touch: Reduces external components and simplifies design.
Wearable Health Trackers
The ultra-compact WLCSP package and low-power Cortex-M3 core are perfect for space-constrained wearables.
Smart Watches
With 512KB flash and LCD support, it can handle complex UI and sensor fusion in smart watches.
Portable Medical Devices
Cap Sense and low voltage operation enable compact, touch-based medical devices.
IoT Sensor Nodes
The small footprint and low power consumption make it ideal for distributed IoT sensors.
Handheld Industrial Tools
High memory and DMA support data logging and real-time processing in rugged handheld tools.
Consumer Electronics
WLCSP package allows for miniaturized designs in remote controls and smart accessories.
- Q: What is the package type for this MCU?
- A: It comes in a 104-UFBGA (WLCSP) package.
- Q: How much flash memory is available?
- A: It has 512KB of flash memory.
- Q: What is the RAM size?
- A: It includes 80KB of SRAM.
- Q: Does it have an LCD controller?
- A: Yes, it features an integrated LCD controller.
- Q: What is the operating voltage?
- A: It operates from 1.8V to 3.6V.
