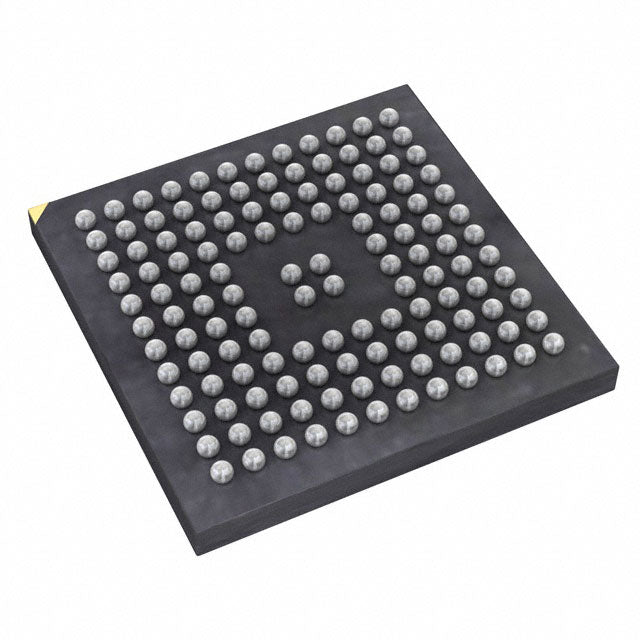

STMicroelectronics STM32L162QCH6
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $25.36 | $25.36 |
| 15+ | $5.83 | $87.45 |
| 25+ | $5.71 | $142.75 |
| 50+ | $5.39 | $269.50 |
| 100+ | $4.76 | $476.00 |
| N+ | $0.95 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | STM32L1 |
| Packaging | Tray | NULL |
| Core Processor | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core |
| Speed | 32MHz |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT |
| Number of I/O | 109 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 8K x 8 |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 40x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 132-UFBGA |
| ROHS |  |
The STMicroelectronics STM32L162QCH6 is an ultra-low-power ARM Cortex-M3 microcontroller running at 32MHz. It features 256KB flash, 32KB SRAM, and an integrated LCD driver, along with DMA, I2S, PWM, and WDT. Operating from 1.8V to 3.6V, it is packaged in a 132-UFBGA, ideal for battery-powered and display-equipped applications.
- Integrated LCD driver: Eliminates external display controller, saving BOM cost.
- Ultra-low-power design: Extends battery life in portable and wearable devices.
- 256KB flash / 32KB SRAM: Supports complex applications and data buffering.
- Compact 132-UFBGA package: Enables miniaturized product designs.
Smart Meters
Integrated LCD driver and low-power modes enable battery-operated utility meters with local display.
Medical Wearables
Ultra-low-power Cortex-M3 with 32KB SRAM supports continuous glucose monitors and ECG patches.
Industrial HMI
LCD controller and rich analog peripherals drive operator panels for factory equipment.
Home Automation
Multiple communication interfaces and DMA facilitate smart thermostats and security keypads.
Portable Instrumentation
1.8V operation and 85°C rating suit handheld data loggers and field calibrators.
Energy Harvesting
Low power consumption and brown-out detection enable solar-powered wireless sensor nodes.
- Q: What core does the STM32L162QCH6 use?
- A: It uses an ARM Cortex-M3 core running at up to 32MHz.
- Q: What is the memory configuration?
- A: It has 256KB flash and 32KB SRAM.
- Q: Does it have an LCD controller?
- A: Yes, it includes an integrated LCD driver, along with DMA, I2S, PWM, and WDT.
- Q: What is the package and temperature range?
- A: It comes in a 132-UFBGA package, rated for -40°C to +85°C.
